Description

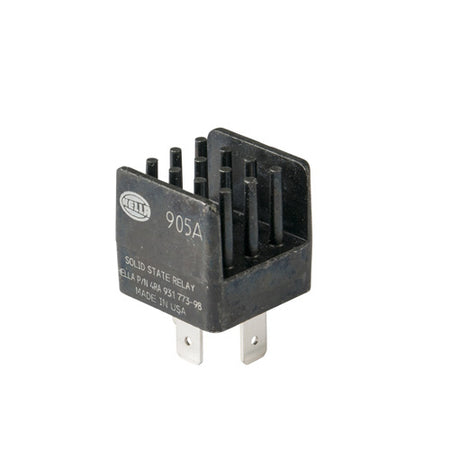

The Mini ISO Hella Solid State Relay is rated to 12 volt, 20 amp continuous. The relay is SPST N/O (normally open) style and features a solid state switch and sealed cover design. 12V solid state relays are faster than standard electromechanical relays. Along with being faster, the Hella solid state relay offers an increased lifetime. The relay features no moving parts that will wear and no contacts to pit or build up carbon on, making it a highly durable relay even if it is activated many times. Other advantages of the 12V solid state relay is that it includes ignition protection with no sparking so it can be used in explosive environments, where it is critical that no spark is generated during switching. Solid state relays are much less sensitive to storage and operating environment factors such as mechanical shock, vibration, humidity, and external magnetic fields. Get a safe, durable, and high quality relay for your electrical application with a Hella solid state relay from Del City.
Rated Continuous Load: N/O 20A at 85°C
Ambient Temperature: -40°C to +125°C
Max. Inrush Load: Overload protected at 80A
Max. Coil Voltage: 16V
Switching Frequency: 0 Hz to 1000 Hz
Mechanical Cycles: 10,000,000
IP Rating: 67
