Description

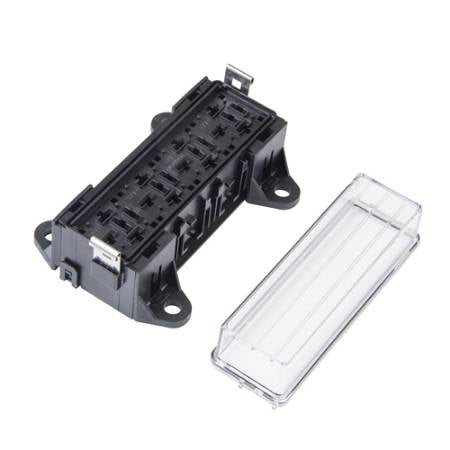

The 7-way micro relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple micro relays can be mounted cleanly. The 7-way mini relay holder block kit includes everything needed for immediate installation, just add up to seven micro style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Insert the crimped wires into the bottom of the block. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place the TPAs into the top of the block and then add the micro relays. Place the cover over the top.
Kit Contents: 7-Way Relay Block Base, 7 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple blocks together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
Micro ISO Relays sold separately.
