Description

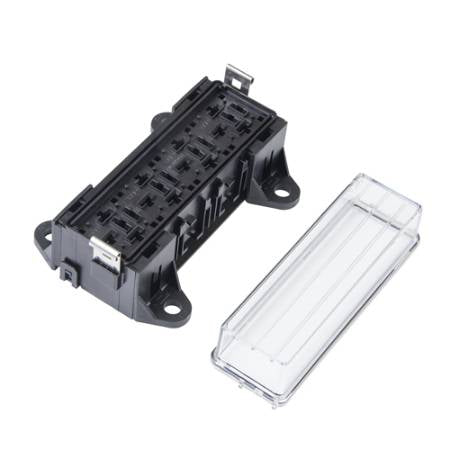

The 4-way mini relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple 5-pin relays can be mounted cleanly. The 4-way mini relay holder block kit includes everything needed for immediate installation, just add up to four mini style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Set the TPA into position but do not push to connect yet. Insert the crimped wires into the bottom of the block, then push the TPA in until it snaps into place. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place relays into the top of the block and place the cover over the top.
Kit Contents: 4-Way Relay Block Base, 4 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Terminal position assurance (TPA) locks are labeled for ease of use.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple holders together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
5-Pin Relays sold separately.
