Description

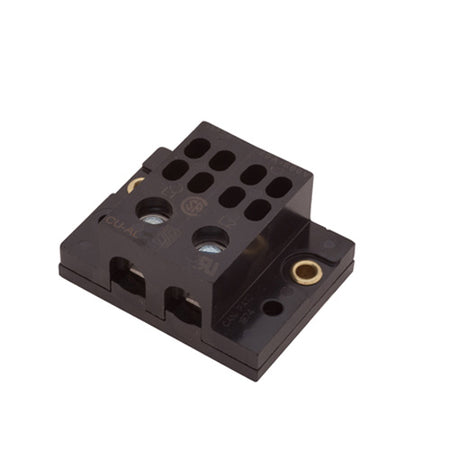

A dual 1 to 4 quick connect power distribution block acts as a location for distributing power to multiple accessory loads. The block is a 2 pole connection with two isolated inputs and four outputs each. Designed for surface mounting and is rated to 70 amps at 600 volts.
Use to reduce the assembly costs of internal wiring.
Designed for equipment that now requires screw connections in the field.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
UL File #E62622; CSA file #LR15364.
The dual 4-screw outputs accept 4 female .250" push-on terminals for quick connections
