Description

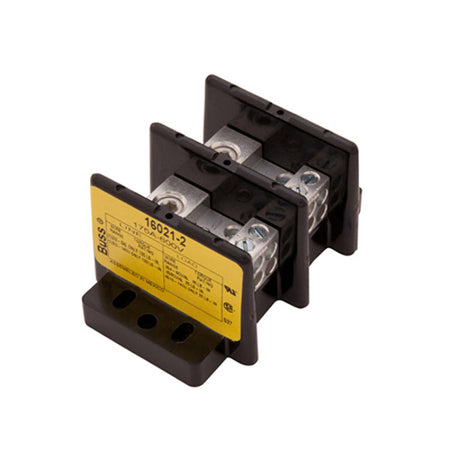

A dual 1 to 6 screw power distribution block provides a convenient location to distribute power to multiple accessory loads. Rated up to 175 amps at 600 volts, this distribution block is designed to be surface mounted, has a 2 pole connection with two isolated inputs and six outputs each.
Suitable for field wiring.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
The dual 6-screw outputs accept 6 female #4-#14CU/#8 AL screw connections.
UL File #E62622 (General Industrial Class per UL 1059).
CSA certified File #LR15364.
Patented feeder bar connector.
