Description

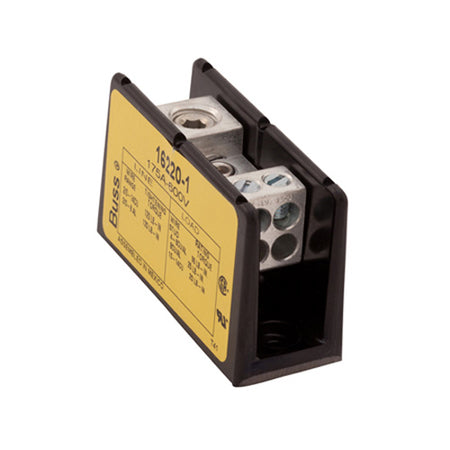

A single 1 to 4 power distribution block has a 2 pole connection with two isolated inputs and four outputs. The block is rated up to 175 amps at 600 volts and can be easily surface mounted. This power distribution block provides a convenient location to distribute power to multiple accessory loads.
Suitable for field wiring.
The single 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL .
The single 4-screw outputs accept 4 female #4-#14CU/#8 AL screw connections.
File #E62622 (General Industrial Class per UL 1059 File #LR15364).
Patented feeder bar connector.
