Deutsch Connectors
For more than 70 years, TE's DEUTSCH connectors have reliably performed in some of the harshest environments. For aerospace, defense, marine, industrial commercial transportation, and rail, our DEUTSCH product line includes wires, connectors, contacts, accessories, and subsea power cables. Today, DEUTSCH is part of the family brands of TE and expands the product portfolio in military specs, such as the MIL-DTL-38999 DEUTSCH connector series. DEUTSCH connectors are also leaders in autosport and motorsport applications.

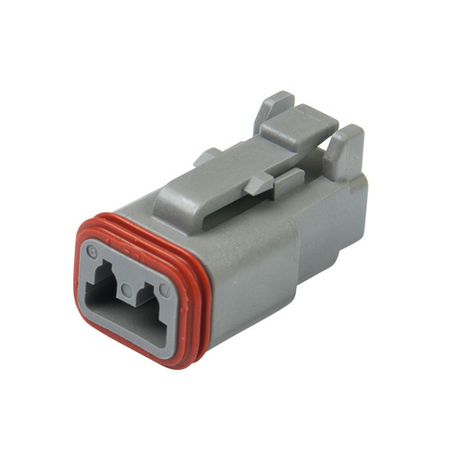

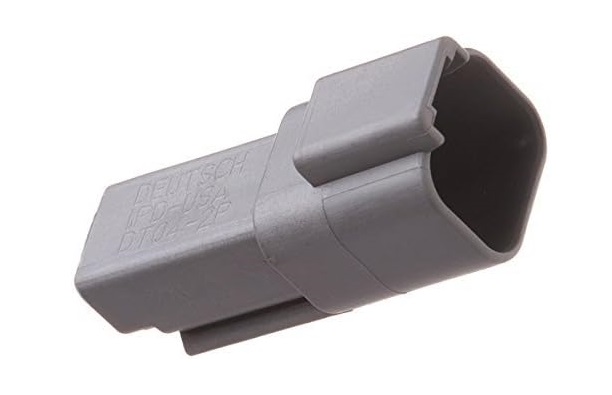

Deutsch DT Series Plug
Options
Quantity: 1
Item #: 15062100
Description:
The DEUTSCH DT Series sealed plug housings make up half of the complete DT Series system connection. The plugs are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a plug assembly, you will need:
One (1) 2-way plug housing
One (1) 2-way plug wedge
Two (2) plug socket contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click HERE for installation instructions.
The DEUTSCH DT Series sealed plug housings make up half of the complete DT Series system connection. The plugs are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a plug assembly, you will need:
One (1) 2-way plug housing
One (1) 2-way plug wedge
Two (2) plug socket contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click HERE for installation instructions.

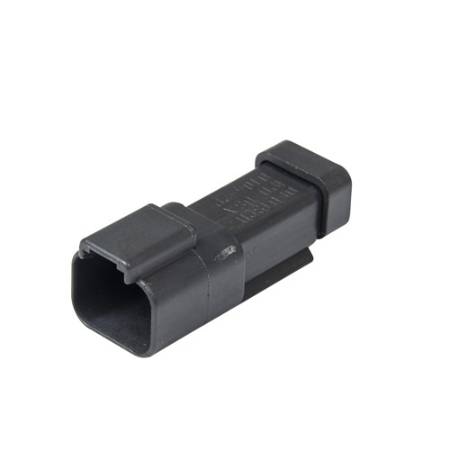

Deutsch DT Series Receptacle
Options
Quantity: 1
Item #: 15062200
Description:
The DEUTSCH DT Series sealed receptacle housings make up half of the complete DT Series system connection. The receptacles are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a receptacle assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click HERE for installation instructions.
The DEUTSCH DT Series sealed receptacle housings make up half of the complete DT Series system connection. The receptacles are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a receptacle assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click HERE for installation instructions.

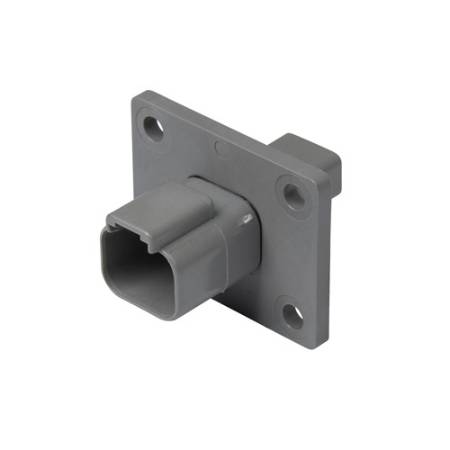

Deutsch DT Series Flange Mount Receptacle *price check $42.69*
Options
Quantity: 1
Item #: 15062100
Description:
The DEUTSCH DT Series sealed plug housings make up half of the complete DT Series system connection. The plugs are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a plug assembly, you will need:
One (1) 2-way plug housing
One (1) 2-way plug wedge
Two (2) plug socket contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click Here for installation instructions.
The DEUTSCH DT Series sealed plug housings make up half of the complete DT Series system connection. The plugs are designed with thermoplastic housings and silicone rear wire and interface seals, which make them extremely durable and able to withstand exposure to moisture and a wide temperature range. They have an IP68 immersion rating and show no defects after 100 cycles of engagement and disengagement.
To complete a plug assembly, you will need:
One (1) 2-way plug housing
One (1) 2-way plug wedge
Two (2) plug socket contacts
Complete plug assembly and receptacle assembly are required to complete the system. Sealing Plugs can be used in place of any unoccupied socket contact.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Accepts size 16 contacts (14-20 ga, 13 amps).
Integrated latch for mating.
Click Here for installation instructions.
Deutsch DT Series Bussed Receptacle
Options
Quantity: 1
Item #: 15060002
Description:
DEUTSCH DT Series Bussed Receptacles are environmentally sealed connectors designed for use in heavy duty applications where multiple circuits require a common electrical pathway. A bussbar, or buss, is a thin conductive strip connecting two or more contacts within the body of a connector. Bussbars allow power or data to be fed into a connector through one or more terminals and drawn out as needed through the other contacts on the same buss. Connectors can carry one or more bussbars, creating multiple independent electrical circuits within the same connector body and distributing power or data to many components. A single bussed connector can replace several standard connectors or splices, saving space, wiring, and weight. The DT Series Bussed Receptacles are a compact economical bussing option housed in rugged, field-proven DT receptacle bodies. The bussed DTs mate with standard DT plugs and meet all the performance specifications for the DT series.
Maximum Current Rating: 13 amps.
The maximum current rating is the total amount of current for the entire buss. Current can be distributed in many combinations, but cannot exceed 13 amps per contact.
Complete plug assembly and receptacle assembly are required to complete the system.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Click HERE for installation instructions.
DEUTSCH DT Series Bussed Receptacles are environmentally sealed connectors designed for use in heavy duty applications where multiple circuits require a common electrical pathway. A bussbar, or buss, is a thin conductive strip connecting two or more contacts within the body of a connector. Bussbars allow power or data to be fed into a connector through one or more terminals and drawn out as needed through the other contacts on the same buss. Connectors can carry one or more bussbars, creating multiple independent electrical circuits within the same connector body and distributing power or data to many components. A single bussed connector can replace several standard connectors or splices, saving space, wiring, and weight. The DT Series Bussed Receptacles are a compact economical bussing option housed in rugged, field-proven DT receptacle bodies. The bussed DTs mate with standard DT plugs and meet all the performance specifications for the DT series.
Maximum Current Rating: 13 amps.
The maximum current rating is the total amount of current for the entire buss. Current can be distributed in many combinations, but cannot exceed 13 amps per contact.
Complete plug assembly and receptacle assembly are required to complete the system.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
IP68 immersion rating.
Click HERE for installation instructions.
Deutsch DT Series Plug Wedges
Options
Quantity: 1
Item #: 15162100
Description:
DEUTSCH DT Series plug and receptacle wedges are an integral piece to completing the DT Series wire system connection. The wedges are made from a thermoplastic material that provides durability and protection. The plug and receptacle wedges are designed to assist in aligning the socket and pin contacts in place in the plug or receptacle. One (1) plug wedge is required per plug assembly and one (1) receptacle wedge is required per receptacle assembly to complete the proper connections. The DEUTSCH DT Series plug and receptacle wedges are available in 2, 3, 4, 6, 8, or 12-way options to match up with the appropriate configuration for your system or application.
To complete a receptacle assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Click Here for installation instructions.
DEUTSCH DT Series plug and receptacle wedges are an integral piece to completing the DT Series wire system connection. The wedges are made from a thermoplastic material that provides durability and protection. The plug and receptacle wedges are designed to assist in aligning the socket and pin contacts in place in the plug or receptacle. One (1) plug wedge is required per plug assembly and one (1) receptacle wedge is required per receptacle assembly to complete the proper connections. The DEUTSCH DT Series plug and receptacle wedges are available in 2, 3, 4, 6, 8, or 12-way options to match up with the appropriate configuration for your system or application.
To complete a receptacle assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Click Here for installation instructions.

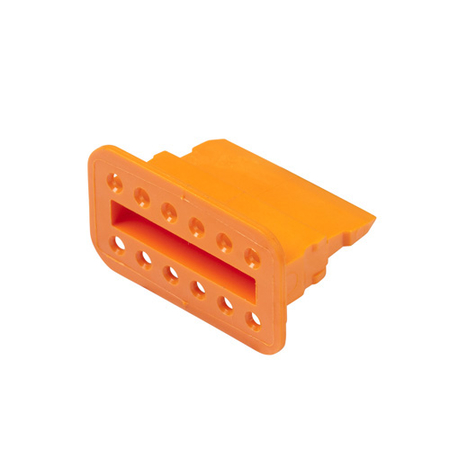

Deutsch DT Series Receptacle Wedges
Options
Quantity: 1
Item #: 15162200
Description:
DEUTSCH DT Series receptacle wedges are made from a thermoplastic material for a durable and lasting hold. Receptacle wedges are a necessary component in aligning the pin contacts into proper position within the receptacle. One (1) wedge is required per receptacle housing to complete the assembly.
To complete a plug assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Complete plug assembly and receptacle assembly are required to complete the system.
Click Here for installation instructions.
DEUTSCH DT Series receptacle wedges are made from a thermoplastic material for a durable and lasting hold. Receptacle wedges are a necessary component in aligning the pin contacts into proper position within the receptacle. One (1) wedge is required per receptacle housing to complete the assembly.
To complete a plug assembly, you will need:
One (1) 2-way receptacle housing
One (1) 2-way receptacle wedge
Two (2) receptacle pin contacts
Complete plug assembly and receptacle assembly are required to complete the system.
Click Here for installation instructions.
Deutsch DT Series Stamped Pin Contacts *product sold in groups of 100 but in drowndown shows differ?**
Options
Quantity: 1
Item #: 15621422
Description:
Plug socket contacts complete the electrical connection of the DEUTSCH DT Series plug housing assembly. There are three different types of contacts available. Nickel-plated stamped & formed, nickel-plated solid barrel, or gold-plated solid barrel.
Use with any of our Deutsch DT Series Plugs.
Use a sealing plug to fill an unused plug socket contact.
Product comes in roll of 100 pieces
Click Here for installation instructions.
Plug socket contacts complete the electrical connection of the DEUTSCH DT Series plug housing assembly. There are three different types of contacts available. Nickel-plated stamped & formed, nickel-plated solid barrel, or gold-plated solid barrel.
Use with any of our Deutsch DT Series Plugs.
Use a sealing plug to fill an unused plug socket contact.
Product comes in roll of 100 pieces
Click Here for installation instructions.

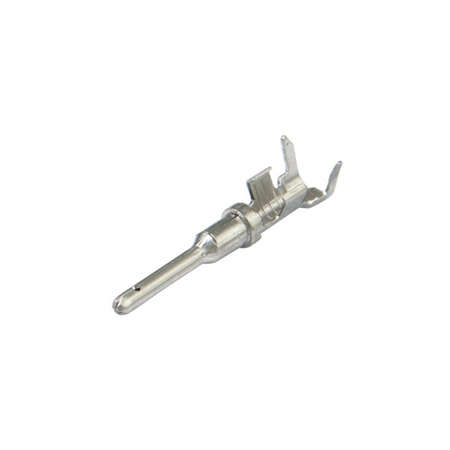

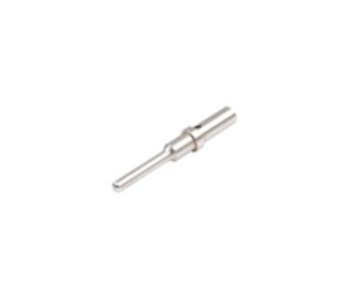

Deutsch DT Series Receptacle Pin Contacts *product sold in groups of 100 but in drowndown shows differ?**
Options
Quantity: 1
Item #: 15601422
Description:
Receptacle pin contacts complete the electrical connection of the DEUTSCH DT Series receptacle housing assembly. There are three different types of contacts available. Nickel-plated stamped & formed, nickel-plated solid barrel, or gold-plated solid barrel.
Use with any of our Deutsch DT Series Receptacles.
Use a sealing plug to fill an unused receptacle pin contact.
Product comes in roll of 10 pieces
Click Here for installation instructions.
Receptacle pin contacts complete the electrical connection of the DEUTSCH DT Series receptacle housing assembly. There are three different types of contacts available. Nickel-plated stamped & formed, nickel-plated solid barrel, or gold-plated solid barrel.
Use with any of our Deutsch DT Series Receptacles.
Use a sealing plug to fill an unused receptacle pin contact.
Product comes in roll of 10 pieces
Click Here for installation instructions.

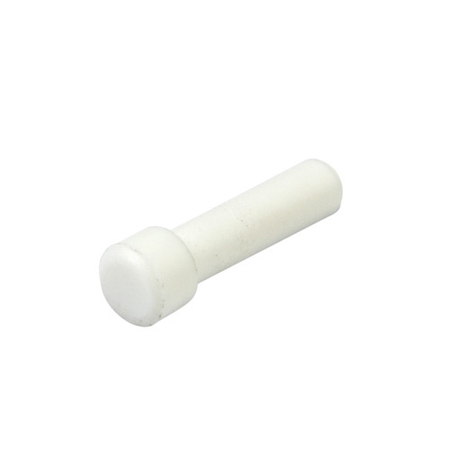

Deutsch DT Series Sealing Plug
Options
Quantity: 1
Item #: 15114017
Description:
DEUTSCH DT Series sealing plugs are made of silicone elastomer and help to protect the plug or receptacle housing from environmental ingress. Sealing plugs can be used to plug any open or unused pin or socket contacts.
Use with any of our Deutsch DT Series Plugs or Receptacles.
Use a sealing plug to fill an unused receptacle pin contact.
Click Here for installation instructions.
DEUTSCH DT Series sealing plugs are made of silicone elastomer and help to protect the plug or receptacle housing from environmental ingress. Sealing plugs can be used to plug any open or unused pin or socket contacts.
Use with any of our Deutsch DT Series Plugs or Receptacles.
Use a sealing plug to fill an unused receptacle pin contact.
Click Here for installation instructions.

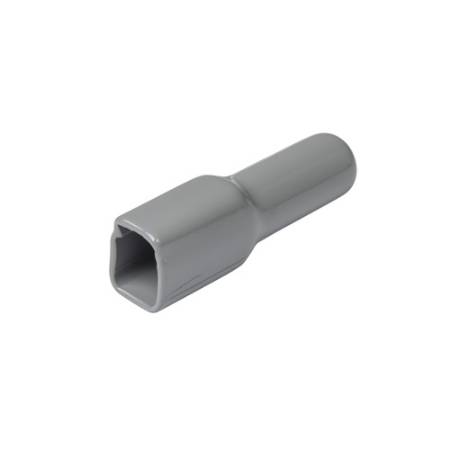

Deutsch DT Series Boots for Plugs
Options
Quantity: 1
Item #: 15066210
Description:
Boots provide a professional looking finishing touch for DEUTSCH DT family connectors. Made of durable plastisol, these slip-on boots are not only aesthetically appealing, but also provide increased protection from dirt, paint overspray, and pressure washing. The plastisol boots offer a slip-on design making installation quick and easy.
Plastisol construction for added durability.
Slip-on design for easy and quick installation.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
Boots provide a professional looking finishing touch for DEUTSCH DT family connectors. Made of durable plastisol, these slip-on boots are not only aesthetically appealing, but also provide increased protection from dirt, paint overspray, and pressure washing. The plastisol boots offer a slip-on design making installation quick and easy.
Plastisol construction for added durability.
Slip-on design for easy and quick installation.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).

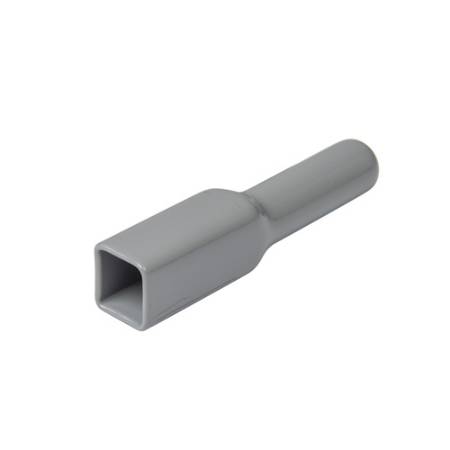

Deutsch DT Series Boots for Receptacles
Options
Quantity: 1
Item #: 15064210
Description:
Boots provide a professional looking finishing touch for DEUTSCH DT family connectors. Made of durable plastisol, these slip-on boots are not only aesthetically appealing, but also provide increased protection from dirt, paint overspray, and pressure washing. The plastisol boots offer a slip-on design making installation quick and easy.
Plastisol construction for added durability.
Slip-on design for easy and quick installation.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
Boots provide a professional looking finishing touch for DEUTSCH DT family connectors. Made of durable plastisol, these slip-on boots are not only aesthetically appealing, but also provide increased protection from dirt, paint overspray, and pressure washing. The plastisol boots offer a slip-on design making installation quick and easy.
Plastisol construction for added durability.
Slip-on design for easy and quick installation.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
Deutsch DT Series Dustcaps for Plugs
Options
Quantity: 1
Item #: 15062108
Description:
The DT Series Thermoplastic dust caps are designed to provide protection for the connector interface when the two halves are not mated.
Thermoplastic construction for added quality and ruggedness.
Caps provide an environmental seal for an unmated plug.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
The DT Series Thermoplastic dust caps are designed to provide protection for the connector interface when the two halves are not mated.
Thermoplastic construction for added quality and ruggedness.
Caps provide an environmental seal for an unmated plug.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
Deutsch DT Series Connector Kits
Options
Quantity: 1
Item #: 15062200KIT
Description:
Kits consist of one Receptical assembly w/wedge, one Plug Housing w/wedge, and enough contacts and pins to complete the assembly. All contacts and pins are Nickle in the 16-14 Ga. Size. If you need the pins or contacts in another size or style, please order them seperatly.
Kits consist of one Receptical assembly w/wedge, one Plug Housing w/wedge, and enough contacts and pins to complete the assembly. All contacts and pins are Nickle in the 16-14 Ga. Size. If you need the pins or contacts in another size or style, please order them seperatly.

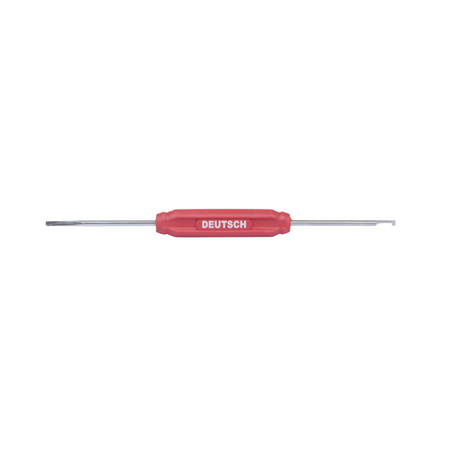

Deutsch Series Multi-Use Removal Tool
Options
Quantity: 1
Item #: 15110001
Description:
The DEUTSCH Multi-Use Removal Tool has a small hook on one end for wedgelock removal, and a small screwdriver on the other end for contact removal, pushing back the locking fingers to release the contact.
For use with DEUTSCH DT, DTM, and DTP Series.
Small hook for wedgelock removal.
small screwdriver for contact removal.
DEUTSCH Part Number DT-RT1
The DEUTSCH Multi-Use Removal Tool has a small hook on one end for wedgelock removal, and a small screwdriver on the other end for contact removal, pushing back the locking fingers to release the contact.
For use with DEUTSCH DT, DTM, and DTP Series.
Small hook for wedgelock removal.
small screwdriver for contact removal.
DEUTSCH Part Number DT-RT1

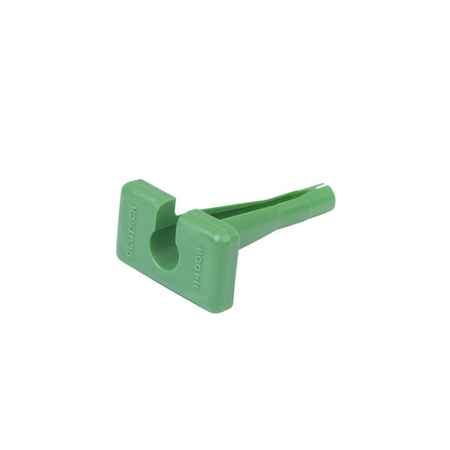

Deutsch Series Removal Tools
Options
Quantity: 1
Item #: 15111405
Description:
DEUTSCH Contact Removal Tools are specific to contact size and are used for contact removal in connectors that utilize a round shoulder contact retention system. They are required for wire removal in the DTHD and Jiffy Splice Series.
Compact and easy to use.
Heavy duty plastic construction.
Remove contacts without damaging wire, insulation, connector seals, or connector bodies.
Use with DEUTSCH Jiffy Splice
DEUTSCH Contact Removal Tools are specific to contact size and are used for contact removal in connectors that utilize a round shoulder contact retention system. They are required for wire removal in the DTHD and Jiffy Splice Series.
Compact and easy to use.
Heavy duty plastic construction.
Remove contacts without damaging wire, insulation, connector seals, or connector bodies.
Use with DEUTSCH Jiffy Splice
