How To Identify Your Mustang
Vehicle Identification Number (VIN) Locator
The vehicle identification number (VIN) is a seventeen-digit alphanumeric code. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.
| Item |
Part # |
|---|---|
| 1 | World manufacturer identifier (WMI) |
| 2 | Restraint type code |
| 3 | Line, series, body type (passenger car) |
| 4 |
Engine code |
| 5 | Computer generated VIN check digit |
| 6 | Model year code |
| 7 |
Assembly plant code |
| 8 | Production sequence number |
World Manufacturer Identifier (WMI)
The first three vehicle identification number (VIN) positions are the world manufacturer identifier (WMI).
1FA - Ford, USA, Passenger Car
Restraint Type Code
The fourth VIN position is the vehicle restraint system type code.
F - Active safety belts - all positions, driver and front passenger air bags
Lines, Series and Body Type Code
Positions 5 through 7 indicate vehicle line, series and body type.
P40 - Two-door coupe
P42 - Two-door coupe, GT (Mach One available in GT coupe only
P44 - Two-door convertible
P45 - Two-door convervitble, GT
P48 - Two-door coupe, Cobra
P49 - Two-door convertible, Cobra
Engine Code
The eighth VIN position is the engine displacement and number of cylinders code.
4 - 3.8L, OHV, EFI, six cylinder
R - 4.6L, DOHC, EFI, eight cylinder (Mach One)
X - 4.6L, SOHC, EFI, eight cylinder
Y - 4.6L, DOHC, S/C, EFI, eight cylinder (Cobra)
Computer Generated Check Digit
The ninth VIN position is a government assigned, computer-generated check digit code (0-9).
Model Year code
The tenth VIN position is the model year code.
3 - 2003
4 - 2004
Assembly Plant Code
The eleventh VIN position is the assembly plant code.
F - Dearborn, Michigan (USA)
Production Sequence Number
The last six VIN positions are the production sequence number. This number is also used as the vehicle serial and warranty number.
100001 - 599999
Vehicle Certification (VC) Label

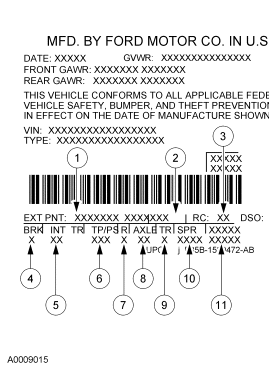

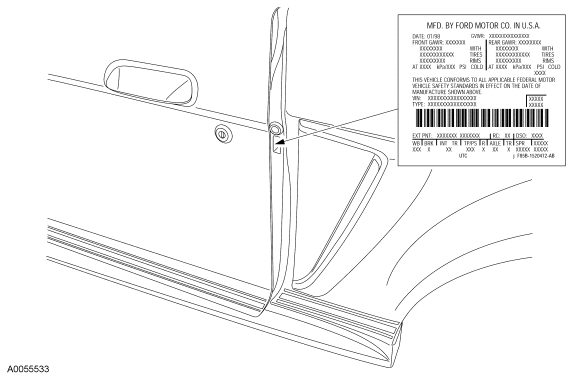

Vehicle Certification (VC) Label Locator
The upper portion of the vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR). The VC label is located on the left-hand door jamb.
| Item |
Description |
|---|---|
| 1 | Exterior paint color code |
| 2 | Region code |
| 3 | Special order code DSO - domestic special order FSO - foreign special order PTO - paint, tire option special order |
| 4 |
Brake type code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 |
Radio type code |
| 8 | Axle ratio code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration code |
Vehicle Certification (VC) Label Reference

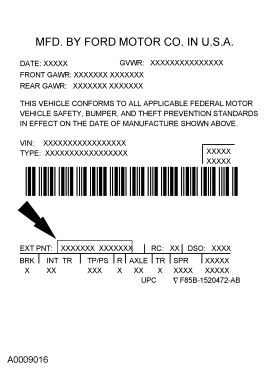

Paint Codes
The first set of paint code letters/numbers listed indicate the vehicle primary body color. The second set of paint code letters/numbers listed (if applicable) indicate a two-tone or accent body color. All colors are base coat/clear coat.
CX - Dark Shadow Gray Metallic
CY - Competition Orange (water based)
D3 - Coloardo Red
D6 - Screaming Yellow (water based)
FX - Merlot - 40th Anniversary Edition
G2 - Redfire (water based)
G6 - Purple Haze (water based) - Cobra
L5 - Azure Blue (water based) - Mach One
SN - Sonic Blue (water based)
UA - Ebony (water based)
YN - Silver Metallic (water based)
Z1 - Oxford White (water based)

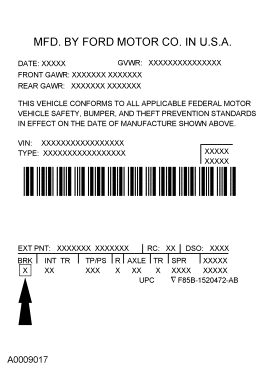

Brake Codes
The brake type codes are:
2 - Four-wheel disc with anti-lock brake system (ABS)
3 - Traction control
5 - Four-wheel disc with anti-lock brake system (ABS) and traction control

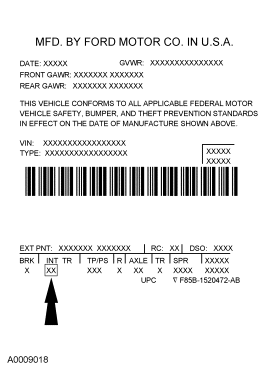

Interior Trim Codes
The interior trim codes are listed below. The first letter/number is for the interior fabric. The second letter is for the interior color.
9 - Rhodes cloth
A - Link Weave cloth - Mach One
B - Imola leather
G - Imola leather (sport seat)
M - Nudo leather - Cobra
U - Shadow/Twill cloth
The interior trim colors are:
2 - Medium Graphite
D - Midnight Black/Mysticchrome - Cobra
H - Medium Parchment
W - Midnight Black
Z - Oxford White

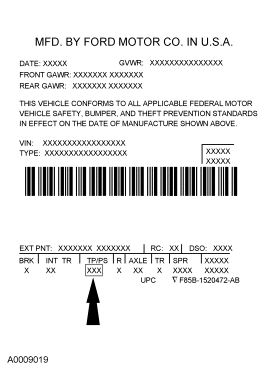

Tape/Paint Stripe Codes
P - White/Gray (tape applique emblem)
X - Black (hood and body tape stripe)
4 - Arizona Beige (anniversary car accent stripe)

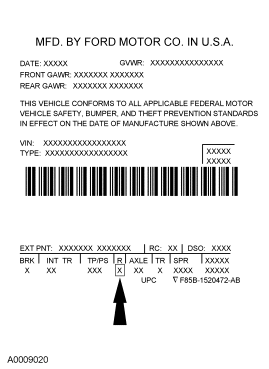

Radio Codes
The type type codes are:
2 - Premium electronic AM/FM stereo with compact disc (CD) player and clock
9 - CDX6+, AM/FM stereo with 6-disc compact disc (CD) and MACH 460 subwoofer sound system
Z - AM/FM stereo, dual media (MP3) with compact disc (CD) player

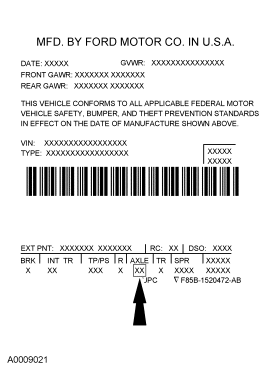

Axle Ratio Codes
The axle ratio is:
Blank - 2.73 ratio
Blank - 3.27 ratio
Blank - 3.55 ratio

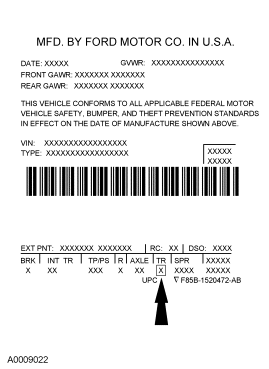

Transmission Codes
The transmission code is:
9 - Four-speed automatic (4R75W) - GT
B - Six-speed manual (T56) - Cobra
G - Five-speed manual (TR3150) - Base
K - Five-speed manual (TR3650) - GT
U - Four-speed automatic (4R70W) - Base

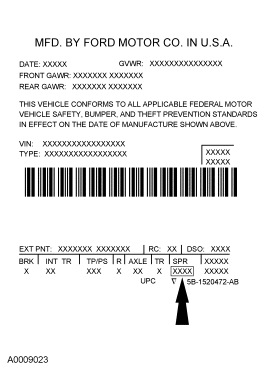

Spring Codes
The spring code portion of the vehicle certification (VC) label identifies both the front and rear springs. The first letter/number indicates the front spring code. The second letter/number indicates the rear spring code.
Front springs - base part number - 5310 (RH/LH)
Rear springs - base part number - 5560 (RH/LH)

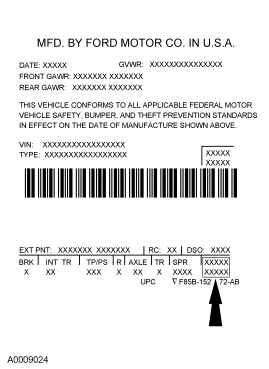

Powertrain Calibration Information
NOTE: Powertrain calibration information is limited to a maximum of five characters per line on the Vehicle Certification Label. Because of this, calibration identification consisting of more than five characters will wrap to the second line on the VC label.
Powertrain calibration information is printed in the lower right corner of the Vehicle Certification Label. Only the base calibration information is printed. Revision levels will not appear, however, this information can be found in the On Line Automotive Service Information System (OASIS). For the current model year, Ford Motor Company is using three different protocols which describe powertrain base calibration. These protocols are designed to provide worldwide standardization for vehicle calibration. If the electronic calibration strategy has been used since 1998 and carried into the current model year, protocol 1 will be used. Refer to Protocol 1 below. If the electronic calibration strategy has been used since 1999 and is carried into the current model year, protocol 2 will be used. Refer to Protocol 2 below. For new electronic calibration strategies introduced since the 2000 model year, use protocol 3. Refer to Protocol 3 below.
Protocol 1
| Item |
Description |
|---|---|
| 1 | Model year (model year in which calibration strategy was first introduced) |
| 2 | Engine code |
| 3 | Engine revision level |
Protocol 2
| Item |
Description |
|---|---|
| 1 | Model year (model year in which calibration strategy was first introduced) |
| 2 | Engine code |
| 3 | Transmission code |
| 4 | Emission standard (designates the specific country emission standard) |
| 5 | Design level (design level assigned to the engine) |
Protocol 3
| Item |
Description |
|---|---|
| 1 | Model year (model year in which calibration strategy was first introduced) |
| 2 | Vehicle code |
| 3 | Transmission code |
| 4 | Unique calibration (designates different hardware to similar vehicles). Example: tires, drive ratios, etc. |
| 5 | Fleet code (describes fleet to which the vehicle belongs). Example: 6 - evaporative emissions |
| 6 | Certification region (lead region where multiple regions are included in one calibration). Example: A - U.S. federal |
| 7 | Revision level (will advance as revisions occur). Not printed on label |
Y - 2000
1 - 2001
2 - 2002
3 - 2003
4 - 2004
Vehicle Line
ZE - Mustang
Transmission
1 - Automatic transmission
2 - Manual transmission
Unique Calibration (Fleet Codes)
1 - HDGE/Dyno
2 - Fast AMA, U.S.
3 - ADP, U.S.
4 - Not assigned
5 - Not assigned
6 - Evaporative emissions
7 - MACAA
8 - On-board diagnostics (OBD)
9 - Not assigned
Certification Region
5 - U.S. fifty states
A - U.S. federal, including altitude, may include Canada and/or Mexico
B - U.S. California standard, includes U.S. green states
C - Canada
D - China
E - European Community (Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Portugal, Spain, Sweden and United Kingdom)
F - Extended European Community (E plus Croatia, Czech Republic, Estonia, Hungary, Norway, Poland, Romania, Russian Federation, Slovakia, Slovenia, Switzerland and Yugoslavia)
G - Gulf Cooperative Council (Bahrain, Kuwait, Oman, Qatar, Saudi Arabia and UAE)
H - Hong Kong
J - Japan
K - Korea
L - Malaysia
M - Mexico
N - New Zealand
P - Australia
Q - South America (Brazil)
S - Singapore
T - Taiwan
U - South America (unleaded fuel regions)
V - Vietnam
X - Rest of world (ROW)
Y - Military
Z - Israel
Revision Level (not printed on label)
91-99 - Hardware certification levels
01-04 - Prelimary levels
00 - Job 1 production (initial certification)
05-09 - Pre-job 1 revisions to calibrations
10-89 - Post-job 1 revisions to calibrations
0b - Durability test level
BD - On-board diagnostics (OBD) intermediate level (pre-05)
