Relays
Our range of electrical relays provides essential control for managing high-current circuits with precision and reliability. Designed to switch electrical loads efficiently, these relays handle everything from automotive lighting and fuel pumps to fans and accessories. Each relay is built to withstand demanding conditions and ensure consistent performance, making them ideal for both standard and custom electrical systems. With various configurations and ratings available, our relays offer the flexibility needed for reliable circuit management and seamless integration into any project.

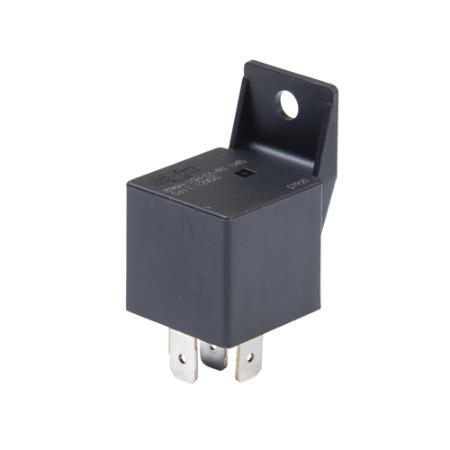

Song Chuan NC/NO Change Over Relays W/ Mounting Bracket
Options
Quantity: 1
Item #: 74594
Description:
These Song Chuan 5 pin relays are controlled by another switch, control module, or computer. They are a great option as they function as a standard 12 and 24 volt relay replacement or addition in order to achieve full voltage. They can easily attach directly onto another vehicle or other electrical application. Ideal applications are lamps, auxiliary lamps, fog horns, fan motors, window lifters, air conditioners, heated rear windows and more.
Mechanical life - no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50A.
12V DC 30/50A , 24V DC 15/20A.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Open Contact Contact and Coil: AC 1000V, 50/60Hz 1 min.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
These Song Chuan 5 pin relays are controlled by another switch, control module, or computer. They are a great option as they function as a standard 12 and 24 volt relay replacement or addition in order to achieve full voltage. They can easily attach directly onto another vehicle or other electrical application. Ideal applications are lamps, auxiliary lamps, fog horns, fan motors, window lifters, air conditioners, heated rear windows and more.
Mechanical life - no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50A.
12V DC 30/50A , 24V DC 15/20A.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Open Contact Contact and Coil: AC 1000V, 50/60Hz 1 min.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
Song Chuan NC/NO Change Over Relay
Options
Quantity: 1
Item #: 73984
Description:
This Song Chuan relay allows a low current flow circuit to control a high current flow circuit. It is a standard replacement or addition for full voltage on equipment existing in vehicles today. This relay does not have a mounting bracket and is designed to easily fit within standard fuse boxes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
Mechanical life - no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50A. 12V, 30/50A.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Open Contact Contact and Coil: AC 1000V, 50/60Hz 1 min.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
This Song Chuan relay allows a low current flow circuit to control a high current flow circuit. It is a standard replacement or addition for full voltage on equipment existing in vehicles today. This relay does not have a mounting bracket and is designed to easily fit within standard fuse boxes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
Mechanical life - no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50A. 12V, 30/50A.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Open Contact Contact and Coil: AC 1000V, 50/60Hz 1 min.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
Relay with Resistor - 12V DC, 30/50 Amp
Options
Quantity: 1
Item #: 73992
Description:
These relays feature a built-in resistor and will fit within a standard fuse box. While the relay permits a low current flow circuit to control a high current flow circuit, the internal resistor protects sensitive equipment against voltage spikes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
Engineered to deliver a superior performance over a long life.
Permissible ambient temperature -40° C to 85° C.
Mechanical Life-no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50 amps.
12 volt; 30/50 amp.
896H-1CH-D-R1-12VDC = Item#73992.
These relays feature a built-in resistor and will fit within a standard fuse box. While the relay permits a low current flow circuit to control a high current flow circuit, the internal resistor protects sensitive equipment against voltage spikes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
Engineered to deliver a superior performance over a long life.
Permissible ambient temperature -40° C to 85° C.
Mechanical Life-no load = 1,000,000 cycles at +85° C the N.O. contacts will carry a continuous load of 50 amps.
12 volt; 30/50 amp.
896H-1CH-D-R1-12VDC = Item#73992.
Song Chuan #85 Negative Relays with Diodes - 12V DC
Options
Quantity: 1
Item #: 73986
Description:
These Song Chuan relays have an 85 negative polarity and allow a low current flow circuit to control a high current flow circuit. They are remote control electronic switches that are normally controlled by another switch, computer or control module. The internal diode within this relay protects sensitive equipment against voltage spikes. The lack of a mounting bracket on the relay allows an easy fit within standard fuse boxes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
The diode eliminates voltage spikes which can damage sensitive electronic equipment.
Engineered to deliver a superior performance over a long life.
Permissible ambient temperature: -40°F to 185°F (-40°C to 85°C).
N.O. contacts will carry a continuous load of 50A.
Contact Material: AgSnO alloy.
Space saving relay with high current capacity.
Diode polarity =Terminal #85 negative (-), Terminal #86 positive (+).
RoHS & ELV Compliant.
These Song Chuan relays have an 85 negative polarity and allow a low current flow circuit to control a high current flow circuit. They are remote control electronic switches that are normally controlled by another switch, computer or control module. The internal diode within this relay protects sensitive equipment against voltage spikes. The lack of a mounting bracket on the relay allows an easy fit within standard fuse boxes. The best solution for full voltage applicable to head lamps, auxiliary lamps, fog horns, motors for fans, window lifters, air conditioners, heated rear windows, or the myriad of other equipment existing on vehicles today.
The diode eliminates voltage spikes which can damage sensitive electronic equipment.
Engineered to deliver a superior performance over a long life.
Permissible ambient temperature: -40°F to 185°F (-40°C to 85°C).
N.O. contacts will carry a continuous load of 50A.
Contact Material: AgSnO alloy.
Space saving relay with high current capacity.
Diode polarity =Terminal #85 negative (-), Terminal #86 positive (+).
RoHS & ELV Compliant.
Relay and Socket Harness Kit *NEEDS PRICE*
Options
Quantity: 1
Item #:
Description:
This is a complete relay and socket harness, allowing for easy installation and time savings. This relay and harness kit can be spliced directly into a vehicle's harness. The socket is manufactured with 14 gauge wire leads, and the ISO relay features a mounting bracket.
Socket and relay complete.
Molded base 5-pole socket.
ISO relay features a mounting bracket for easy installation.
14 gauge, 12" wire leads on 30, 87 & 87A terminals.
20 gauge, 12" wire leads on 85 & 86 terminals.
40/60 amp; 12 volts DC.
This is a complete relay and socket harness, allowing for easy installation and time savings. This relay and harness kit can be spliced directly into a vehicle's harness. The socket is manufactured with 14 gauge wire leads, and the ISO relay features a mounting bracket.
Socket and relay complete.
Molded base 5-pole socket.
ISO relay features a mounting bracket for easy installation.
14 gauge, 12" wire leads on 30, 87 & 87A terminals.
20 gauge, 12" wire leads on 85 & 86 terminals.
40/60 amp; 12 volts DC.

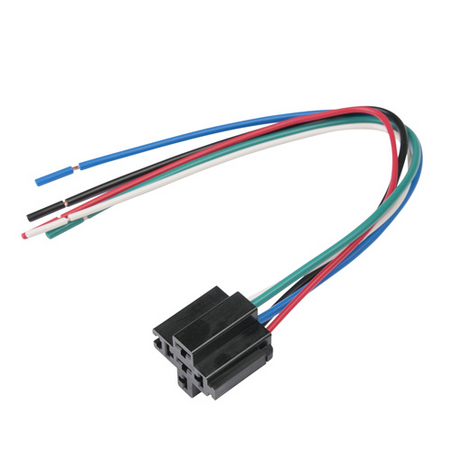

Pre-Wired Relay Socket Harness
Options
Quantity: 1
Item #: 73570
Description:
Pre-wired relay socket harnesses are pre-wired, can be wired directly into your vehicles harness, and allows for easy installation and time savings. A relay socket harness will connect with most 5 pin standard relays and change over relays.
Molded base is a 5-pole socket.
14 gauge used with 12" wire leads on 30, 87 & 87A terminals.
16 gauge used with 12" wire leads on 85 & 86 terminals.
Pre-wired relay socket harnesses are pre-wired, can be wired directly into your vehicles harness, and allows for easy installation and time savings. A relay socket harness will connect with most 5 pin standard relays and change over relays.
Molded base is a 5-pole socket.
14 gauge used with 12" wire leads on 30, 87 & 87A terminals.
16 gauge used with 12" wire leads on 85 & 86 terminals.
Hella Mini ISO & 280 Weatherproof Relay Connectors
Options
Quantity: 1
Item #: 73573
Description:
Mini weatherproof relay connectors are available for ISO and 280 mini relays. The waterproof connectors are designed to mate directly with 280 and ISO relays. The 280 and ISO connectors are constructed with 12" leads of red 12 gauge, black 18 gauge, and blue 18 gauge wires for quick and easy setup. The wires are arranged as 86: Black Wire Power In, 85: Dark Blue Wire Ground, 30: Red Wire Accessory Power, 87/87a: Red Wire Switched Accessory Power. Easily complete your relay setup with mini 280 or mini ISO connectors.
Connector 73573 mates directly with Mini ISO Relay (Item 74978).
Connector 73574 mates directly with Mini 280 Relay (Item 74977).
Mini weatherproof relay connectors are available for ISO and 280 mini relays. The waterproof connectors are designed to mate directly with 280 and ISO relays. The 280 and ISO connectors are constructed with 12" leads of red 12 gauge, black 18 gauge, and blue 18 gauge wires for quick and easy setup. The wires are arranged as 86: Black Wire Power In, 85: Dark Blue Wire Ground, 30: Red Wire Accessory Power, 87/87a: Red Wire Switched Accessory Power. Easily complete your relay setup with mini 280 or mini ISO connectors.
Connector 73573 mates directly with Mini ISO Relay (Item 74978).
Connector 73574 mates directly with Mini 280 Relay (Item 74977).
5 Pin Relay Socket - Molded
Options
Quantity: 1
Item #: 73999
Description:
The 5 pin relay socket is a molded relay base that can be used with most standard and change over relays. Simply insert 4 or 5 pre-wire terminals into the 5 pin molded relay housing and wire the bases directly to your vehicle's harness. Since the relay socket can be used with most standard relays, it is useful and applicable in many applications and projects. The 5 pin relay socket is especially useful when replacing existing relay sockets or when building relay harnesses. The base of the relay socket is manufactured with a durable, impact-resistant material to sustain a long lifespan.
Base features a durable, impact-resistant material.
Includes five (5) 16-14 gauge terminals.
The 5 pin relay socket is a molded relay base that can be used with most standard and change over relays. Simply insert 4 or 5 pre-wire terminals into the 5 pin molded relay housing and wire the bases directly to your vehicle's harness. Since the relay socket can be used with most standard relays, it is useful and applicable in many applications and projects. The 5 pin relay socket is especially useful when replacing existing relay sockets or when building relay harnesses. The base of the relay socket is manufactured with a durable, impact-resistant material to sustain a long lifespan.
Base features a durable, impact-resistant material.
Includes five (5) 16-14 gauge terminals.

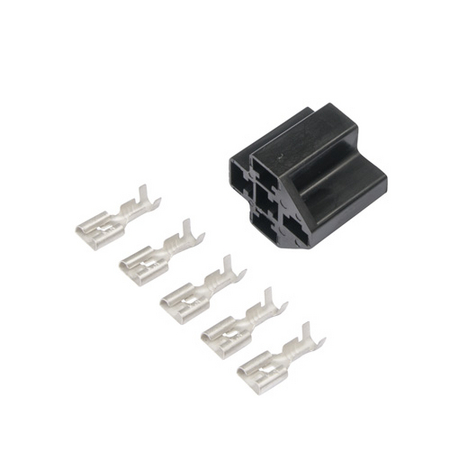

Hella Micro & Mini Relay Socket Bracket Mount Connector Blocks
Options
Quantity: 1
Item #: 73560
Description:
The sides of the blocks slide together to form a relay panel. The Mini 5 to 9 bracket will only mate to itself. The Mini 5 bracket and the Micro 5 bracket can connect to blocks of the same item number and together. The brackets provide a cleaner, more professional look. Mounted base makes changing relay easier and keeps relays together in one location when multiple blocks are connected.
The sides of the blocks slide together to form a relay panel. The Mini 5 to 9 bracket will only mate to itself. The Mini 5 bracket and the Micro 5 bracket can connect to blocks of the same item number and together. The brackets provide a cleaner, more professional look. Mounted base makes changing relay easier and keeps relays together in one location when multiple blocks are connected.
Hella Micro & Mini Connector Block Kits
Options
Quantity: 1
Item #: 73564
Description:
Packaged for your convenience, Hella relay connector block and terminals kits make installation a breeze. All kits include a Hella connector block and the appropriate number and size of Hella relay terminals. Simply select the configuration that matches your relay!
Kit 1 includes the Hella connector block and 5 terminals.
Kit 2 includes the Hella connector block and 9 terminals.
Kit 3 includes the Hella connector block and 5 terminals.
Packaged for your convenience, Hella relay connector block and terminals kits make installation a breeze. All kits include a Hella connector block and the appropriate number and size of Hella relay terminals. Simply select the configuration that matches your relay!
Kit 1 includes the Hella connector block and 5 terminals.
Kit 2 includes the Hella connector block and 9 terminals.
Kit 3 includes the Hella connector block and 5 terminals.

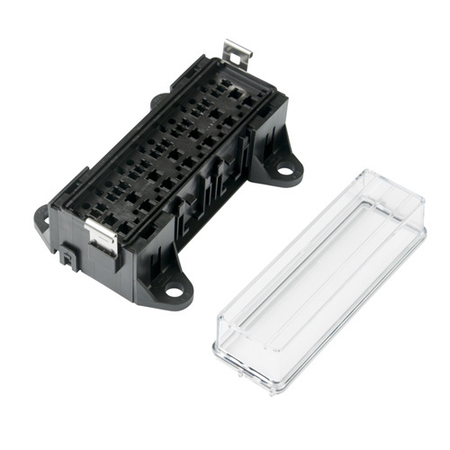

Mini Relay Block Kit - 4-Way
Options
Quantity: 1
Item #: 73568
Description:
The 4-way mini relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple 5-pin relays can be mounted cleanly. The 4-way mini relay holder block kit includes everything needed for immediate installation, just add up to four mini style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Set the TPA into position but do not push to connect yet. Insert the crimped wires into the bottom of the block, then push the TPA in until it snaps into place. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place relays into the top of the block and place the cover over the top.
Kit Contents: 4-Way Relay Block Base, 4 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Terminal position assurance (TPA) locks are labeled for ease of use.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple holders together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
5-Pin Relays sold separately.
The 4-way mini relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple 5-pin relays can be mounted cleanly. The 4-way mini relay holder block kit includes everything needed for immediate installation, just add up to four mini style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Set the TPA into position but do not push to connect yet. Insert the crimped wires into the bottom of the block, then push the TPA in until it snaps into place. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place relays into the top of the block and place the cover over the top.
Kit Contents: 4-Way Relay Block Base, 4 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Terminal position assurance (TPA) locks are labeled for ease of use.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple holders together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
5-Pin Relays sold separately.
Micro Relay Holder Kit - 7-Way
Options
Quantity: 1
Item #: 73569
Description:
The 7-way micro relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple micro relays can be mounted cleanly. The 7-way mini relay holder block kit includes everything needed for immediate installation, just add up to seven micro style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Insert the crimped wires into the bottom of the block. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place the TPAs into the top of the block and then add the micro relays. Place the cover over the top.
Kit Contents: 7-Way Relay Block Base, 7 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple blocks together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
Micro ISO Relays sold separately.
The 7-way micro relay holder is ideal for protecting relays against dust, debris and liquids that can hinder relay performance. The relay block allows for a professional installation where multiple micro relays can be mounted cleanly. The 7-way mini relay holder block kit includes everything needed for immediate installation, just add up to seven micro style relays. To install, crimp the terminals provided in the kit to 14 or 16 ga wire. Insert the crimped wires into the bottom of the block. Place the bottom cover on. Mount the block. The mounting feet are adjustable and removable. Place the TPAs into the top of the block and then add the micro relays. Place the cover over the top.
Kit Contents: 7-Way Relay Block Base, 7 Terminal Position Assurance Locks, Cover, Bottom Cover and Terminals.
Mounting legs are removable.
Snap-on clear, plastic cover includes an o-ring to provide a secure seal.
Snap-on bottom cover provides extra resistance against the elements.
Connect multiple blocks by removing mounting legs & snapping multiple blocks together.
Can also connect a combination of 73568, 73569, or 78377 blocks.
Micro ISO Relays sold separately.

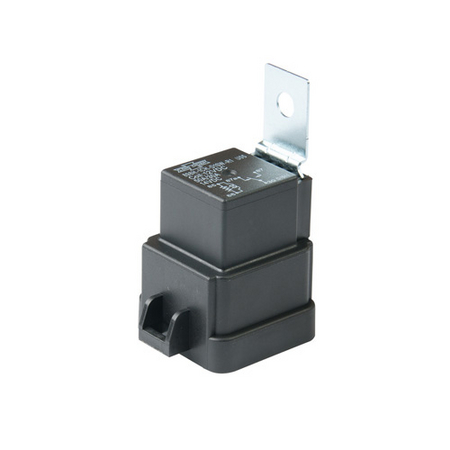

Song Chuan Mini 280 Skirted Weatherproof Relay with Resistor - 12V DC 30/50 Amp
Options
Quantity: 1
Item #: 74977
Description:
Song Chuan's Mini 280 Weatherproof relay is a skirted relay that allows a high current flow circuit to be controlled by a low current circuit. The internal resistor protects against voltage spikes and the skirt connects with the sealed OEM connector in the vehicle. This skirted relay features Mini 280 style pins. The best solution for full voltage applications such as head lamps, auxiliary lamps, fog horns, fan motors, window lifters, air conditioners, heated rear windows or a myraid of other equipment.
S.P.D.T. with resistor, steel bracket, dust cover with weatherproof.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Mechanical life: 10,000,000 operations (frequency 18,000 operations/hr).
Electrical life: 100,000 operations (frequency 1,200 operations/hr).
Resistive Load: NO: 50A 14V DC, 20A 28V DC. NC: 30A 14V DC, 15A 28V DC.
Song Chuan's Mini 280 Weatherproof relay is a skirted relay that allows a high current flow circuit to be controlled by a low current circuit. The internal resistor protects against voltage spikes and the skirt connects with the sealed OEM connector in the vehicle. This skirted relay features Mini 280 style pins. The best solution for full voltage applications such as head lamps, auxiliary lamps, fog horns, fan motors, window lifters, air conditioners, heated rear windows or a myraid of other equipment.
S.P.D.T. with resistor, steel bracket, dust cover with weatherproof.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Mechanical life: 10,000,000 operations (frequency 18,000 operations/hr).
Electrical life: 100,000 operations (frequency 1,200 operations/hr).
Resistive Load: NO: 50A 14V DC, 20A 28V DC. NC: 30A 14V DC, 15A 28V DC.

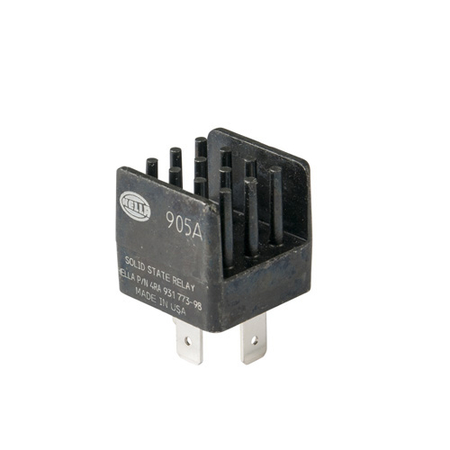

Hella Mini ISO Solid State Relay - 12V DC, 20 Amp
Options
Quantity: 1
Item #: 74992
Description:
The Mini ISO Hella Solid State Relay is rated to 12 volt, 20 amp continuous. The relay is SPST N/O (normally open) style and features a solid state switch and sealed cover design. 12V solid state relays are faster than standard electromechanical relays. Along with being faster, the Hella solid state relay offers an increased lifetime. The relay features no moving parts that will wear and no contacts to pit or build up carbon on, making it a highly durable relay even if it is activated many times. Other advantages of the 12V solid state relay is that it includes ignition protection with no sparking so it can be used in explosive environments, where it is critical that no spark is generated during switching. Solid state relays are much less sensitive to storage and operating environment factors such as mechanical shock, vibration, humidity, and external magnetic fields. Get a safe, durable, and high quality relay for your electrical application with a Hella solid state relay from Del City.
Rated Continuous Load: N/O 20A at 85°C
Ambient Temperature: -40°C to +125°C
Max. Inrush Load: Overload protected at 80A
Max. Coil Voltage: 16V
Switching Frequency: 0 Hz to 1000 Hz
Mechanical Cycles: 10,000,000
IP Rating: 67
The Mini ISO Hella Solid State Relay is rated to 12 volt, 20 amp continuous. The relay is SPST N/O (normally open) style and features a solid state switch and sealed cover design. 12V solid state relays are faster than standard electromechanical relays. Along with being faster, the Hella solid state relay offers an increased lifetime. The relay features no moving parts that will wear and no contacts to pit or build up carbon on, making it a highly durable relay even if it is activated many times. Other advantages of the 12V solid state relay is that it includes ignition protection with no sparking so it can be used in explosive environments, where it is critical that no spark is generated during switching. Solid state relays are much less sensitive to storage and operating environment factors such as mechanical shock, vibration, humidity, and external magnetic fields. Get a safe, durable, and high quality relay for your electrical application with a Hella solid state relay from Del City.
Rated Continuous Load: N/O 20A at 85°C
Ambient Temperature: -40°C to +125°C
Max. Inrush Load: Overload protected at 80A
Max. Coil Voltage: 16V
Switching Frequency: 0 Hz to 1000 Hz
Mechanical Cycles: 10,000,000
IP Rating: 67
Accele Electronics Time Delay on Release Relay - 12V DC, 30 Amp
Options
Quantity: 1
Item #: 74985
Description:
The 12 volt change over relay is an adjustable relay that can maintain a power supply for as short as 2 seconds, or for as long as 3 minutes after power is switched off. Essentially, the solid state timing circuit with variable resistor within the relay allows for this to happen. In order to adjust the timing, the easy access top waterproof adjusting cover must be removed, and the adjustable potentiometer must be turned. A common use for this type of change over relay is to power a vehicle's dome lights, which allows drivers and passengers additional time to exit the vehicle before the courtesy lights go dark. This is just one example of many applications for timer relays. This particular change over time delay relay is normally closed/normally open and fits a standard 5 terminal harness configuration.
Solid state timing circuit with variable resistor allows for an adjustable time from 2 seconds to 3 minutes (must remove cover to reach adjustment screw on base).
Fits standard relay 5 terminal harness configurations.
Built in diode to stop timer feedback issues.
SPDT Change Over NC/NO (form C).
Rated up to 20/30 Amp, 12V DC.
Voltage range: 8.2 ~ 14.8V DC.
Operating temperature range: -40°C to 80°C (-40°F to 176°F).
The 12 volt change over relay is an adjustable relay that can maintain a power supply for as short as 2 seconds, or for as long as 3 minutes after power is switched off. Essentially, the solid state timing circuit with variable resistor within the relay allows for this to happen. In order to adjust the timing, the easy access top waterproof adjusting cover must be removed, and the adjustable potentiometer must be turned. A common use for this type of change over relay is to power a vehicle's dome lights, which allows drivers and passengers additional time to exit the vehicle before the courtesy lights go dark. This is just one example of many applications for timer relays. This particular change over time delay relay is normally closed/normally open and fits a standard 5 terminal harness configuration.
Solid state timing circuit with variable resistor allows for an adjustable time from 2 seconds to 3 minutes (must remove cover to reach adjustment screw on base).
Fits standard relay 5 terminal harness configurations.
Built in diode to stop timer feedback issues.
SPDT Change Over NC/NO (form C).
Rated up to 20/30 Amp, 12V DC.
Voltage range: 8.2 ~ 14.8V DC.
Operating temperature range: -40°C to 80°C (-40°F to 176°F).
Hella Time Delay on Release Relay - 12V DC
Options
Quantity: 1
Item #: 74986
Description:
A time delay relay may be used for event sequencing, instrumentation control, in an alarm circuit or watchdog circuit. Sometimes two time-delay relays are used in conjunction with each other to provide a pulsing signal. These two time delay relays can be combined to form what is commonly known as a repeat cycle timer. Delay on Release relay can be used to power a vehicle's dome lights, which allows passengers and drivers additional time to exit the vehicle. Delay on Operate relay can be used to protect sensitive, critical equipment during system power-up by providing a brief time delay during start-up until the system is fully energized. These relays offer easy access to timing adjustments without having to remove a cover or the relay from the circuit. 12V. Time Delay Range: 0-900 seconds (0-15 minutes). Includes mounting bracket.
Power must be continuously applied to input terminals during operation of the relay.
Contacts will transfer to the energized position when an external control switch is closed.
The time delay interval is initiated when the external control switch is opened.
Once time delay interval has completed, the contacts will switch to the energized position.
The time delay will restart the next time the control switch is opened.
If control switch is re-closed before the time delay period has completed, the contacts will remain in the energized position and the time delay period will reset.
A time delay relay may be used for event sequencing, instrumentation control, in an alarm circuit or watchdog circuit. Sometimes two time-delay relays are used in conjunction with each other to provide a pulsing signal. These two time delay relays can be combined to form what is commonly known as a repeat cycle timer. Delay on Release relay can be used to power a vehicle's dome lights, which allows passengers and drivers additional time to exit the vehicle. Delay on Operate relay can be used to protect sensitive, critical equipment during system power-up by providing a brief time delay during start-up until the system is fully energized. These relays offer easy access to timing adjustments without having to remove a cover or the relay from the circuit. 12V. Time Delay Range: 0-900 seconds (0-15 minutes). Includes mounting bracket.
Power must be continuously applied to input terminals during operation of the relay.
Contacts will transfer to the energized position when an external control switch is closed.
The time delay interval is initiated when the external control switch is opened.
Once time delay interval has completed, the contacts will switch to the energized position.
The time delay will restart the next time the control switch is opened.
If control switch is re-closed before the time delay period has completed, the contacts will remain in the energized position and the time delay period will reset.
Hella Time Delay on Operate Relay - 12V DC
Options
Quantity: 1
Item #: 74987
Description:
A time delay relay may be used for event sequencing, instrumentation control, in an alarm circuit or watchdog circuit. Sometimes two time-delay relays are used in conjunction with each other to provide a pulsing signal. These two time delay relays can be combined to form what is commonly known as a repeat cycle timer. Delay on Release relay can be used to power a vehicle's dome lights, which allows passengers and drivers additional time to exit the vehicle. Delay on Operate relay can be used to protect sensitive, critical equipment during system power-up by providing a brief time delay during start-up until the system is fully energized. These relays offer easy access to timing adjustments without having to remove a cover or the relay from the circuit. 12V. Time Delay Range: 0-900 seconds (0-15 minutes). Includes mounting bracket.
The time delay period begins when power is applied to the input terminals of the relay.
When the time delay has completed, the contacts will switch to the energized position.
The relay contacts will remain in the energized position until power is removed.
The contacts of the relay transfer to the unenergized position upon removal of power.
The time delay of the relay will reset if power is removed before the delay has completed.
A time delay relay may be used for event sequencing, instrumentation control, in an alarm circuit or watchdog circuit. Sometimes two time-delay relays are used in conjunction with each other to provide a pulsing signal. These two time delay relays can be combined to form what is commonly known as a repeat cycle timer. Delay on Release relay can be used to power a vehicle's dome lights, which allows passengers and drivers additional time to exit the vehicle. Delay on Operate relay can be used to protect sensitive, critical equipment during system power-up by providing a brief time delay during start-up until the system is fully energized. These relays offer easy access to timing adjustments without having to remove a cover or the relay from the circuit. 12V. Time Delay Range: 0-900 seconds (0-15 minutes). Includes mounting bracket.
The time delay period begins when power is applied to the input terminals of the relay.
When the time delay has completed, the contacts will switch to the energized position.
The relay contacts will remain in the energized position until power is removed.
The contacts of the relay transfer to the unenergized position upon removal of power.
The time delay of the relay will reset if power is removed before the delay has completed.
Song Chuan High Power Automotive Relays with Diodes
Options
Quantity: 1
Item #: 74952
Description:
These Song Chuan single pole, normally open hi-amp automotive relays can switch up to a 200A resistive load. Ideal for use with large draw items or components such as pumps, motors or winches. It can power sub-panels or multiple circuits. These power relays were engineered to deliver a superior performance over a long life.
Operating Ambient Temperature: -40°F to 167°F (-40°C to +75°C).
Between Contact and Coil: AC 1000V, 50/60Hz 1 min.
Contact Voltage Drop: 200mV at 200A.
Mechanical Life - No Load = 1,000,000 operations (frequency 18,000 operations/hr).
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
Operate Time: 50ms Max. Release Time: 50 ms Max/100 ms Max (for coil parallel with diode).
These Song Chuan single pole, normally open hi-amp automotive relays can switch up to a 200A resistive load. Ideal for use with large draw items or components such as pumps, motors or winches. It can power sub-panels or multiple circuits. These power relays were engineered to deliver a superior performance over a long life.
Operating Ambient Temperature: -40°F to 167°F (-40°C to +75°C).
Between Contact and Coil: AC 1000V, 50/60Hz 1 min.
Contact Voltage Drop: 200mV at 200A.
Mechanical Life - No Load = 1,000,000 operations (frequency 18,000 operations/hr).
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
Operate Time: 50ms Max. Release Time: 50 ms Max/100 ms Max (for coil parallel with diode).
Song Chuan High Power Automotive Relay with Resistor - 200 Amp, 12V DC
Options
Quantity: 1
Item #: 74996
Description:
These Song Chuan single pole, normally open hi-amp automotive relays can switch up to a 200A resistive load. Ideal for use with large draw items or components such as pumps, motors or winches. It can power sub-panels or multiple circuits. These power relays were engineered to deliver a superior performance over a long life.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Contact and Coil: AC 1000V, 50/60Hz 1 min.
Contact Voltage Drop: 200mV at 200A.
Mechanical Life - No Load = 1,000,000 operations (frequency 18,000 operations/hr).
12V DC, 20 Amp.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
These Song Chuan single pole, normally open hi-amp automotive relays can switch up to a 200A resistive load. Ideal for use with large draw items or components such as pumps, motors or winches. It can power sub-panels or multiple circuits. These power relays were engineered to deliver a superior performance over a long life.
Operating Ambient Temperature: -40°F to 257°F (-40°C to +125°C).
Between Contact and Coil: AC 1000V, 50/60Hz 1 min.
Contact Voltage Drop: 200mV at 200A.
Mechanical Life - No Load = 1,000,000 operations (frequency 18,000 operations/hr).
12V DC, 20 Amp.
RoHS & ELV Compliant.
Contact Material: AgSnO alloy.
Screw-Type Terminal Blocks - 30 Amp, 600 Volt
Options
Quantity: 1
Item #: 70013
Description:
Screw terminal blocks provide a common area to neatly connect multiple wire connections. The blocks are an individual gang/non bussed screw terminal blocks that joins positive or negative connections for either AC or DC applications. Each barrier on the block is spaced 0.41" to provide protection to the #8 screw mounting areas. The bars on the screw terminal block are thermoplastic and feature copper screw connection points. The screw terminal blocks selection from Del City features blocks ranging in length form 2 gang to 12 gang and can accept #10-22 AWG sized wires. Protect, connect, and organize your wire connections with a high quality and reliable screw terminal block.
Rating: 30 Amps, 600V AC/DC
Center spacing: 0.563"
Distance between barriers: 0.416"
Temperature rating: -40°F to 257°F (-40°C to 125°C)
Wire size: #10-22 AWG
Mounting: M4
RoHS Compliant.
Screw terminal blocks provide a common area to neatly connect multiple wire connections. The blocks are an individual gang/non bussed screw terminal blocks that joins positive or negative connections for either AC or DC applications. Each barrier on the block is spaced 0.41" to provide protection to the #8 screw mounting areas. The bars on the screw terminal block are thermoplastic and feature copper screw connection points. The screw terminal blocks selection from Del City features blocks ranging in length form 2 gang to 12 gang and can accept #10-22 AWG sized wires. Protect, connect, and organize your wire connections with a high quality and reliable screw terminal block.
Rating: 30 Amps, 600V AC/DC
Center spacing: 0.563"
Distance between barriers: 0.416"
Temperature rating: -40°F to 257°F (-40°C to 125°C)
Wire size: #10-22 AWG
Mounting: M4
RoHS Compliant.
Blue Sea Systems Terminal Blocks & Jumpers
Options
Quantity: 1-5
Item #: 80542
Description:
Blue Sea Systems fully insulated independent terminal blocks are used to isolate circuits. Each screw pair is one isolated circuit. Terminal block jumpers allow the creation of common circuits. Closed back design completely insulates power from the mounting surface. Terminal block jumpers are made of nickel-plated brass and have a continuous amperage of 65A, same as the block.
2 to 10 circuits.
Maximum Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: Phenolic
Bus Material: Nickel-Plated Brass
Screw Size: #10
CE Certified
Blue Sea Systems fully insulated independent terminal blocks are used to isolate circuits. Each screw pair is one isolated circuit. Terminal block jumpers allow the creation of common circuits. Closed back design completely insulates power from the mounting surface. Terminal block jumpers are made of nickel-plated brass and have a continuous amperage of 65A, same as the block.
2 to 10 circuits.
Maximum Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: Phenolic
Bus Material: Nickel-Plated Brass
Screw Size: #10
CE Certified
Screw Connect Power Distribution Block - Dual 1 to 6
Options
Quantity: 1
Item #: 79445
Description:
A dual 1 to 6 screw power distribution block provides a convenient location to distribute power to multiple accessory loads. Rated up to 175 amps at 600 volts, this distribution block is designed to be surface mounted, has a 2 pole connection with two isolated inputs and six outputs each.
Suitable for field wiring.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
The dual 6-screw outputs accept 6 female #4-#14CU/#8 AL screw connections.
UL File #E62622 (General Industrial Class per UL 1059).
CSA certified File #LR15364.
Patented feeder bar connector.
A dual 1 to 6 screw power distribution block provides a convenient location to distribute power to multiple accessory loads. Rated up to 175 amps at 600 volts, this distribution block is designed to be surface mounted, has a 2 pole connection with two isolated inputs and six outputs each.
Suitable for field wiring.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
The dual 6-screw outputs accept 6 female #4-#14CU/#8 AL screw connections.
UL File #E62622 (General Industrial Class per UL 1059).
CSA certified File #LR15364.
Patented feeder bar connector.
Screw Connect Power Distribution Block - Single 1 to 4
Options
Quantity: 1
Item #: 79435
Description:
A single 1 to 4 power distribution block has a 2 pole connection with two isolated inputs and four outputs. The block is rated up to 175 amps at 600 volts and can be easily surface mounted. This power distribution block provides a convenient location to distribute power to multiple accessory loads.
Suitable for field wiring.
The single 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
The single 4-screw outputs accept 4 female #4-#14CU/#8 AL screw connections.
File #E62622 (General Industrial Class per UL 1059 File #LR15364).
Patented feeder bar connector.
A single 1 to 4 power distribution block has a 2 pole connection with two isolated inputs and four outputs. The block is rated up to 175 amps at 600 volts and can be easily surface mounted. This power distribution block provides a convenient location to distribute power to multiple accessory loads.
Suitable for field wiring.
The single 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
The single 4-screw outputs accept 4 female #4-#14CU/#8 AL screw connections.
File #E62622 (General Industrial Class per UL 1059 File #LR15364).
Patented feeder bar connector.
Quick Connect Power Distribution Block - Dual 1 to 4
Options
Quantity: 1
Item #: 79425
Description:
A dual 1 to 4 quick connect power distribution block acts as a location for distributing power to multiple accessory loads. The block is a 2 pole connection with two isolated inputs and four outputs each. Designed for surface mounting and is rated to 70 amps at 600 volts.
Use to reduce the assembly costs of internal wiring.
Designed for equipment that now requires screw connections in the field.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
UL File #E62622; CSA file #LR15364.
The dual 4-screw outputs accept 4 female .250" push-on terminals for quick connections
A dual 1 to 4 quick connect power distribution block acts as a location for distributing power to multiple accessory loads. The block is a 2 pole connection with two isolated inputs and four outputs each. Designed for surface mounting and is rated to 70 amps at 600 volts.
Use to reduce the assembly costs of internal wiring.
Designed for equipment that now requires screw connections in the field.
The dual 1-screw connection input accepts wire sizes 2/0-#14CU/#8AL.
UL File #E62622; CSA file #LR15364.
The dual 4-screw outputs accept 4 female .250" push-on terminals for quick connections
Standalone Stud-Type Junction Blocks - Single Stud
Options
Quantity: 1
Item #: 80000DL
Description:
These stud type standalone junction blocks are designed for surface mounting and provide a common area for heavy duty positive or negative connections within a vehicle. Stud type junction blocks are available in 1 or 2 stud configurations with 1/4", 5/16" & 3/8" studs.
Requires only two mounting holes.
Manufactured with recessed mounting holes for a flush clean look.
1/4", 5/16", & 3/8" studs made of tin-plated copper and housings made of durable thermoplastic.
Includes tin plated brass nuts and standard lock washers.
Tin plated copper lugs
These stud type standalone junction blocks are designed for surface mounting and provide a common area for heavy duty positive or negative connections within a vehicle. Stud type junction blocks are available in 1 or 2 stud configurations with 1/4", 5/16" & 3/8" studs.
Requires only two mounting holes.
Manufactured with recessed mounting holes for a flush clean look.
1/4", 5/16", & 3/8" studs made of tin-plated copper and housings made of durable thermoplastic.
Includes tin plated brass nuts and standard lock washers.
Tin plated copper lugs
8 Point Junction Block
Options
Quantity: 1
Item #: 70008
Description:
An 8 point power distribution block is a 3/8" post that has eight connection screws. This distribution block is designed for conveying power from one main connection. The base material insulates the power junction and allows for easy surface mounting.
The 3/8 inch stud and connection plate is made from nickel-plated copper for better conductivity.
Base material is a glass filled nylon.
Rated at 48V DC.
Mounting is 2.5" center-to-center.
An 8 point power distribution block is a 3/8" post that has eight connection screws. This distribution block is designed for conveying power from one main connection. The base material insulates the power junction and allows for easy surface mounting.
The 3/8 inch stud and connection plate is made from nickel-plated copper for better conductivity.
Base material is a glass filled nylon.
Rated at 48V DC.
Mounting is 2.5" center-to-center.
Stand Alone Mount Junction Block - 5/16", 250 Amp
Options
Quantity: 1
Item #: 70010
Description:
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 5/16" Stud, 250A Max.
Stud Material: Stainless Steel.
Base Material: Glass-Reinforced Nylon.
Max.Torque: 120 in-lbs.
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 5/16" Stud, 250A Max.
Stud Material: Stainless Steel.
Base Material: Glass-Reinforced Nylon.
Max.Torque: 120 in-lbs.
Stand Alone Mount Junction Blocks - 3/8", 250 Amp
Options
Quantity: 1
Item #: 71263
Description:
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 3/8" Stud, 250A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel
Material Housing: Thermoplastic
Max. Torque (in-lbs): 150
Hardware not included.
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 3/8" Stud, 250A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel
Material Housing: Thermoplastic
Max. Torque (in-lbs): 150
Hardware not included.
Stand Alone Mount Junction Blocks - 1/2", 400 Amp
Options
Quantity: 1
Item #: 71260
Description:
A stud type standalone junction block is ideal for surface mounting and is designed to provide a common area for heavy duty positive or negative connections. It is manufactured of durable thermoplastic insulation with zinc-plated brass studs.
Termination: 1/2" Stud, 400A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel (71260); Zinc Plated Brass (71252).
Material Housing: Thermoplastic.
A stud type standalone junction block is ideal for surface mounting and is designed to provide a common area for heavy duty positive or negative connections. It is manufactured of durable thermoplastic insulation with zinc-plated brass studs.
Termination: 1/2" Stud, 400A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel (71260); Zinc Plated Brass (71252).
Material Housing: Thermoplastic.
Large Base Surface Mount Stud-Type Junction Blocks - 5/16" Stud
Options
Quantity: 1
Item #: 71253
Description:
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 5/16" Stud, 200A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Consult drawings for size specifications and max torque (in-lbs).
Hardware not included.
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 5/16" Stud, 200A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Consult drawings for size specifications and max torque (in-lbs).
Hardware not included.
Large Base Surface Mount Stud-Type Junction Blocks - 1/2" Stud
Options
Quantity: 1
Item #: 70007
Description:
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/2" Stud, 200A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Consult drawings for size specifications and max torque (in-lbs).
Hardware not included.
Single stud, stand alone mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/2" Stud, 200A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Consult drawings for size specifications and max torque (in-lbs).
Hardware not included.
Stud-Type, Feed-Through Panel Mount Junction Blocks - 1/2" Stud
Options
Quantity: 1
Item #: 71250
Description:
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/2" Stud; 400A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 300
Consult drawings for size specifications.
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/2" Stud; 400A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 300
Consult drawings for size specifications.
Stud-Type, Feed-Through Panel Mount Junction Blocks - 3/8" Stud
Options
Quantity: 1
Item #: 70009
Description:
A stud type, feed-thru junction block is ideal for firewall mounting on a panel and is designed to transfer power from the engine compartment to the driver compartment. It is made with zinc-plated brass studs and of durable thermoplastic insulation.
Termination: 3/8" Stud; 250A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass.
Material Housing: Thermoplastic.
A stud type, feed-thru junction block is ideal for firewall mounting on a panel and is designed to transfer power from the engine compartment to the driver compartment. It is made with zinc-plated brass studs and of durable thermoplastic insulation.
Termination: 3/8" Stud; 250A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass.
Material Housing: Thermoplastic.
Stud-Type, Feed-Through Panel Mount Junction Blocks - 1/4" Stud
Options
Quantity: 1
Item #: 71254
Description:
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/4" Stud; 100A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 30
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 1/4" Stud; 100A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 30
Stud-Type, Feed-Through Panel Mount Junction Blocks - #10 Stud
Options
Quantity: 1
Item #: 71256
Description:
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 10-32 Stud; 50A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 24
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: 10-32 Stud; 50A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Brass
Material Housing: Thermoplastic
Max. Torque (in-lbs): 24
Stud-Type, Feed-Through Panel Mount Junction Blocks - M6 Stud
Options
Quantity: 1
Item #: 71261
Description:
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: M6 Stud; 100A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel
Material Housing: Thermoplastic
Max. Torque (in-lbs): 55
Single stud, feed-thru panel mount distribution blocks provide heavy-duty ground or power connection points in AC or DC circuits.
Termination: M6 Stud; 100A Max.
Mounting Torque Rating: 48 in-lbs (5.4Nm) max.
Material Studs: Zinc Plated Steel
Material Housing: Thermoplastic
Max. Torque (in-lbs): 55
Blue Sea Systems PowerPost Cable Connectors
Options
Quantity: 1
Item #: 80580
Description:
These Blue Sea Systems insulated stainless steel studs terminate multiple large conductors. One-piece serrated flange nut ensures correct and secure connections. CE certified.
Item 1: Stud dimensions: #10-32 x 5/8"
Item 2: Stud dimensions: 1/4" x 3/4"
Item 3: Stud Dimensions: 1/4"-20 x 1-1/16"
Item 4: Stud Dimensions: 5/16"-18 x 7/8"
Item 5: Stud Dimensions: 3/8"-16 x 7/8"
Mounting Holes: Accepts #8 Screws (2010, 2011); 1/4" Screws (2001, 2002, 2003).
Voltage Max. Operating: 48V DC
Continuous Rating: Not Rated--amperage flows between terminals stacked on post and is determined by wire and terminals used.
These Blue Sea Systems insulated stainless steel studs terminate multiple large conductors. One-piece serrated flange nut ensures correct and secure connections. CE certified.
Item 1: Stud dimensions: #10-32 x 5/8"
Item 2: Stud dimensions: 1/4" x 3/4"
Item 3: Stud Dimensions: 1/4"-20 x 1-1/16"
Item 4: Stud Dimensions: 5/16"-18 x 7/8"
Item 5: Stud Dimensions: 3/8"-16 x 7/8"
Mounting Holes: Accepts #8 Screws (2010, 2011); 1/4" Screws (2001, 2002, 2003).
Voltage Max. Operating: 48V DC
Continuous Rating: Not Rated--amperage flows between terminals stacked on post and is determined by wire and terminals used.
Blue Sea Systems Terminal Feed Connectors
Options
Quantity: 1
Item #: 80575
Description:
These Blue Sea Systems Terminal Feed Connectors provide strain relief when passing high current through hulls, decks and bulkheads. Protects large cables that are subject to chafing even when protective grommeting is used. Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation. One-piece serrated flange nut ensures correct and secure connections.
Rated to 250A at 48V DC
Base Material: Reinforced Thermoplastic
Stud Material: Tin-Plated Copper Alloy
Rated IP66
Item 1 & 2: Stud Size - 5/16"-18
Item 3 & 4: Stud Size - 3/8"-16
These Blue Sea Systems Terminal Feed Connectors provide strain relief when passing high current through hulls, decks and bulkheads. Protects large cables that are subject to chafing even when protective grommeting is used. Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation. One-piece serrated flange nut ensures correct and secure connections.
Rated to 250A at 48V DC
Base Material: Reinforced Thermoplastic
Stud Material: Tin-Plated Copper Alloy
Rated IP66
Item 1 & 2: Stud Size - 5/16"-18
Item 3 & 4: Stud Size - 3/8"-16
Cole Hersee Feeder Studs - 6-36V DC
Options
Quantity: 1
Item #: 80484
Description:
Feeder studs bring power through bulkheads or firewalls and feature an impact-resistant plastic insulator/mounting bushing. They can be used to make easily accessible battery connections, inside or outside the vehicle. They can be used individually or in pairs, and are easy to install.
Voltage: 6-36V DC.
Solid Brass Posts.
Mounting torque 10.8-13.5 Nm (8-10 FT lbs.) Not to exceed 13.5 Nm (10 FT lbs.)
Stud 3/8-16 Tightening Torque 8.1-10.8 Nm (6-8 FT lbs.)
Includes brass hexnuts and lockwashers.
Feeder studs bring power through bulkheads or firewalls and feature an impact-resistant plastic insulator/mounting bushing. They can be used to make easily accessible battery connections, inside or outside the vehicle. They can be used individually or in pairs, and are easy to install.
Voltage: 6-36V DC.
Solid Brass Posts.
Mounting torque 10.8-13.5 Nm (8-10 FT lbs.) Not to exceed 13.5 Nm (10 FT lbs.)
Stud 3/8-16 Tightening Torque 8.1-10.8 Nm (6-8 FT lbs.)
Includes brass hexnuts and lockwashers.
Back To Top
