Heat Shrink Tubing
Shrink tube is a versatile solution for insulating and protecting electrical connections. Simply slip the tubing over your wires and apply heat to shrink it tightly around the connection, providing a secure and durable seal. Our shrink tube is available in various sizes and colors to fit different wire gauges and applications. It offers excellent resistance to abrasion, chemicals, and environmental factors, ensuring long-lasting performance and a professional finish for your electrical projects.

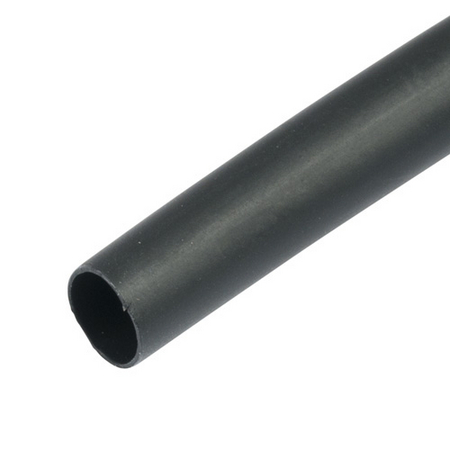

Single Wall Heat Shrink Tubing - Black, 6" Pieces
Options
Quantity: 1
Item #: 96030005
Description: Single wall heat shrink tube is thinly insulated polyolefin tubing. Each single wall shrink tubing is very flexible and flame retardant. This polyolefin heat shrink tube is a great insulator for general wire splices, terminals and other electrical connections. It also provides strain relief for electrical wire connections.
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified.
2:1 shrink ratio.
Specifications Met:
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified.
2:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/16" | 2:1 | .0625" | .03125" |
| 1/8" | 2:1 | .125" | .0625" |
| 3/16" | 2:1 | .1875" | .09375" |
| 1/4" | 2:1 | .250" | .125" |
| 3/8" | 2:1 | .375" | .1875" |
| 1/2" | 2:1 | .500" | .25" |
| 3/4" | 2:1 | .750" | .375" |
| 1.0" | 2:1 | 1.0" | .500" |

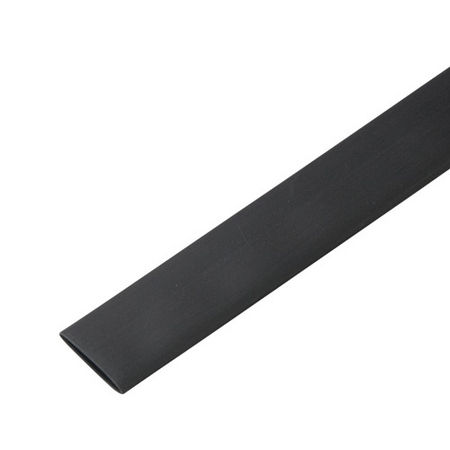

Single Wall Tubing, Black, 4-foot Sticks
Options
Quantity: 1
Item #: 98030005
Description: Single wall heat shrink tube is thinly insulated polyolefin tubing. Each single wall shrink tubing is very flexible and flame retardant. This polyolefin heat shrink tube is a great insulator for general wire splices, terminals and other electrical connections. It also provides strain relief for electrical wire connections.
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/16" | 2:1 | .0625" | .03125" |
| 1/8" | 2:1 | .125" | .0625" |
| 3/16" | 2:1 | .1875" | .09375" |
| 1/4" | 2:1 | .250" | .125" |
| 3/8" | 2:1 | .375" | .1875" |
| 1/2" | 2:1 | .500" | .25" |
| 3/4" | 2:1 | .750" | .375" |
| 1.0" | 2:1 | 1.0" | .500" |

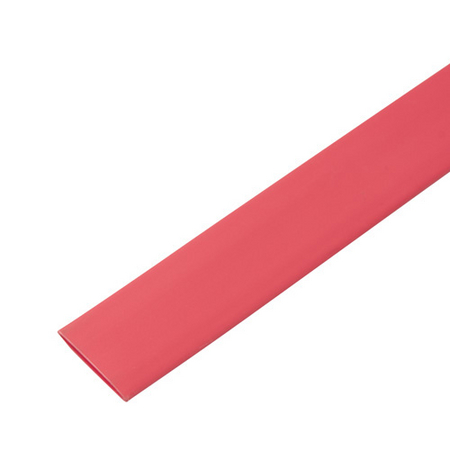

Single Wall Tubing, Red, 4-foot Sticks
Options
Quantity: 1
Item #: 98036501
Description: Single wall heat shrink tube is thinly insulated polyolefin tubing. Each single wall shrink tubing is very flexible and flame retardant. This polyolefin heat shrink tube is a great insulator for general wire splices, terminals and other electrical connections. It also provides strain relief for electrical wire connections.
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/16" | 2:1 | .0625" | .03125" |
| 1/8" | 2:1 | .125" | .0625" |
| 3/16" | 2:1 | .1875" | .09375" |
| 1/4" | 2:1 | .250" | .125" |
| 3/8" | 2:1 | .375" | .1875" |
| 1/2" | 2:1 | .500" | .25" |
| 3/4" | 2:1 | .750" | .375" |
| 1.0" | 2:1 | 1.0" | .500" |

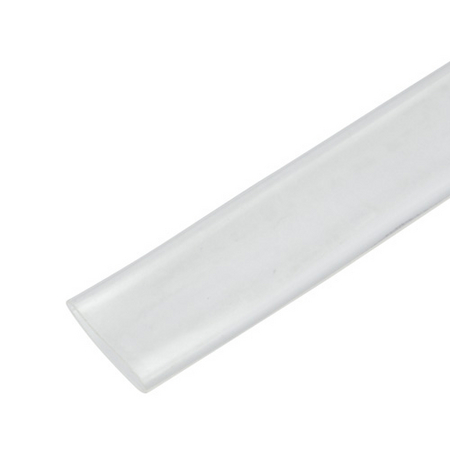

Single Wall Tubing, Clear, 4-foot Sticks
Options
Quantity: 1
Item #: 98036503
Description: Single wall heat shrink tube is thinly insulated polyolefin tubing. Each single wall shrink tubing is very flexible and flame retardant. This polyolefin heat shrink tube is a great insulator for general wire splices, terminals and other electrical connections. It also provides strain relief for electrical wire connections.
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
Meets all the requirements of military/specification MIL-1-23053/5 class 1 and class 3.
Shrink temperature of the tubing is 100°C (212°F) with an indefinite storage life.
Operating temperature range for the single wall tubing is -55°C to 125°C (-67°F to 257°F) and up to 200°C (392°F) for a short time.
UL listed an CSA certified. 2:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/16" | 2:1 | .0625" | .03125" |
| 1/8" | 2:1 | .125" | .0625" |
| 3/16" | 2:1 | .1875" | .09375" |
| 1/4" | 2:1 | .250" | .125" |
| 3/8" | 2:1 | .375" | .1875" |
| 1/2" | 2:1 | .500" | .25" |
| 3/4" | 2:1 | .750" | .375" |
| 1.0" | 2:1 | 1.0" | .500" |
Dual Wall Heat Shrink Tubing, Black, 6" Pieces
Options
Quantity: 1
Item #: 96061505
Description: Dual wall heat shrink tubing is medium insulated polyolefin tubing. Dual wall shrink tubing is flexible and flame retardant. The tubing wall is made of modified polyimide adhesive that melts and flows, encapsulating and sealing components contained within the shrink tube. Dual wall tubing provides excellent protection from fluids, moisture and corrosion and is useful for the outdoor, automotive and marine industries.
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/8" | 3:1 | .125" | .032" |
| 3/16" | 3:1 | .1875" | .063" |
| 1/4" | 3:1 | .250" | .078" |
| 3/8" | 3:1 | .375" | .118" |
| 1/2" | 3:1 | .500" | .157" |
| 3/4" | 3:1 | .750" | .315" |
| 1.0" | 3:1 | 1.0" | .400" |
| 1 1/2" | 3:1 | 1.5" | .598" |

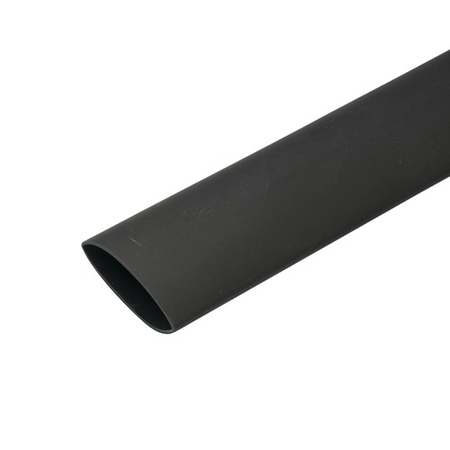

Dual Wall Heat Shrink Tubing, Black, 4 Foot Sticks
Options
Quantity: 1
Item #: 98061505
Description: Dual wall heat shrink tubing is medium insulated polyolefin tubing. Dual wall shrink tubing is flexible and flame retardant. The tubing wall is made of modified polyimide adhesive that melts and flows, encapsulating and sealing components contained within the shrink tube. Dual wall tubing provides excellent protection from fluids, moisture and corrosion and is useful for the outdoor, automotive and marine industries.
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/8" | 3:1 | .125" | .032" |
| 3/16" | 3:1 | .1875" | .063" |
| 1/4" | 3:1 | .250" | .078" |
| 3/8" | 3:1 | .375" | .118" |
| 1/2" | 3:1 | .500" | .157" |
| 3/4" | 3:1 | .750" | .315" |
| 1.0" | 3:1 | 1.0" | .400" |
| 1 1/2" | 3:1 | 1.5" | .598" |

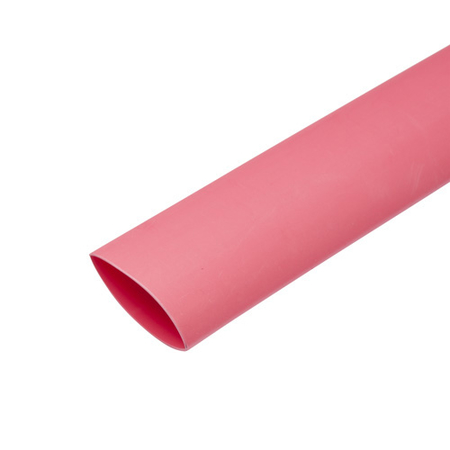

Dual Wall Heat Shrink Tubing, Red, 4 Foot Sticks
Options
Quantity: 1
Item #: 98061501
Description: Dual wall heat shrink tubing is medium insulated polyolefin tubing. Dual wall shrink tubing is flexible and flame retardant. The tubing wall is made of modified polyimide adhesive that melts and flows, encapsulating and sealing components contained within the shrink tube. Dual wall tubing provides excellent protection from fluids, moisture and corrosion and is useful for the outdoor, automotive and marine industries.
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
Used for protecting and sealing electronic components, wire splices and back end connectors.
Provides excellent protection from fluids, moisture and corrosion so it is useful for the outdoor, automotive and marine industries.
The class 3 shrink temperature is 100°C (212°F), and operating temperature range is -45°C to 125°C.
UL listed and CSA certified.
Complies with the requirements of MIL - 25053/4.
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/8" | 3:1 | .125" | .032" |
| 3/16" | 3:1 | .1875" | .063" |
| 1/4" | 3:1 | .250" | .078" |
| 3/8" | 3:1 | .375" | .118" |
| 1/2" | 3:1 | .500" | .157" |
| 3/4" | 3:1 | .750" | .315" |
| 1.0" | 3:1 | 1.0" | .400" |
| 1 1/2" | 3:1 | 1.5" | .598" |

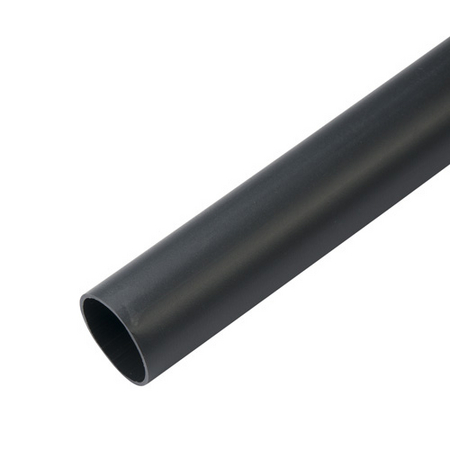

Triple Wall Heat Shrink Tubing - Black, 6" Pieces
Options
Quantity: 1
Item #: 980705
Description: Triple wall heat shrink tubing is a thick, insulated polyolefin heat shrink tube that delivers the ultimate protection for electrical connections, such as battery cables. When heat is applied, the heat shrink tube will bond permanently to a cable or connector. Triple wall heat shrink tubing with its heavy wall structure provides superior protection from fluids, moisture and corrosion, and is useful for heavy duty outdoor, automotive and marine applications.
Heavy-duty heat shrink that provides high abrasion, corrosion, and chemical resistance.
Operating temperature is -55°C to 110°C (-67°F to 230°F) and shrink temperature is 120°C (248°F).
3:1 shrink ratio.
Specifications Met:
Heavy-duty heat shrink that provides high abrasion, corrosion, and chemical resistance.
Operating temperature is -55°C to 110°C (-67°F to 230°F) and shrink temperature is 120°C (248°F).
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/2" | 3:1 | .512" | .157" |
| 3/4" | 3:1 | .750" | .220" |
| 1" | 3:1 | 1.0" | .375" |
| 1 1/2" | 3:1 | 1.575" | .472" |

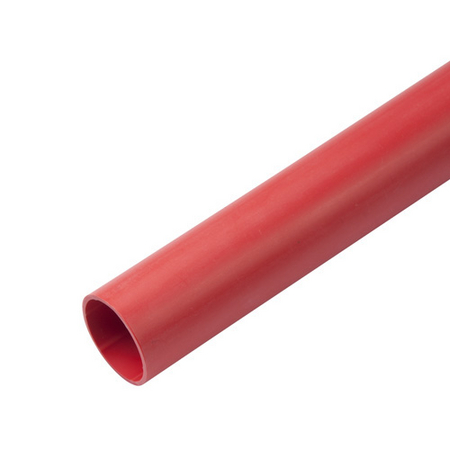

Triple Wall Heat Shrink Tubing - Red, 6" Pieces
Options
Quantity: 1
Item #: 980695
Description: Triple wall heat shrink tubing is a thick, insulated polyolefin heat shrink tube that delivers the ultimate protection for electrical connections, such as battery cables. When heat is applied, the heat shrink tube will bond permanently to a cable or connector. Triple wall heat shrink tubing with its heavy wall structure provides superior protection from fluids, moisture and corrosion, and is useful for heavy duty outdoor, automotive and marine applications.
Heavy-duty heat shrink that provides high abrasion, corrosion, and chemical resistance.
Operating temperature is -55°C to 110°C (-67°F to 230°F) and shrink temperature is 120°C (248°F).
3:1 shrink ratio.
Specifications Met:
Heavy-duty heat shrink that provides high abrasion, corrosion, and chemical resistance.
Operating temperature is -55°C to 110°C (-67°F to 230°F) and shrink temperature is 120°C (248°F).
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/2" | 3:1 | .512" | .157" |
| 3/4" | 3:1 | .750" | .220" |
| 1" | 3:1 | 1.0" | .375" |
| 1 1/2" | 3:1 | 1.575" | .472" |
4:1 Adhesive Lined Heat Shrink Tubing - Black, 4 Foot Sticks
Options
Quantity: 1
Item #: 98082505
Description: 4:1 adhesive lined heat shrink tubing is a semi-rigid designed for a wide variety of electrical applications. The high shrink ratio makes it possible to repair damaged cable jackets without removing connectors. When heat is applied, the adhesive lining melts and flows, encapsulating and sealing components contained within the shrink tube and bonding permanently to a cable or connector. The tube is made up of irradiated crosslinked polyolefin, is flame-retardant, provides excellent protection from fluids, moisture and corrosion, and is useful for the outdoor, automotive and marine industries.
Shrink temperature is 110°C (230°F).
Operating temperature range is -40°C to 125°C (-40°F to 257°F).
Flame-Retardant.
UL Listed.
4:1 Shrink Ratio (shrinks to 25% of original diameter).
Specifications Met:
Shrink temperature is 110°C (230°F).
Operating temperature range is -40°C to 125°C (-40°F to 257°F).
Flame-Retardant.
UL Listed.
4:1 Shrink Ratio (shrinks to 25% of original diameter).
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/4" | 4:1 | .250" | .059" |
| 5/16" | 4:1 | .313" | .079" |
| 1/2" | 4:1 | .512" | .118" |
| 3/4" | 4:1 | .750" | .197" |
| 15/16" | 4:1 | .945" | .236" |
4:1 Adhesive Lined Heat Shrink Tubing - Red, 4 Foot Sticks
Options
Quantity: 1
Item #: 98082500
Description: 4:1 adhesive lined heat shrink tubing is a semi-rigid designed for a wide variety of electrical applications. The high shrink ratio makes it possible to repair damaged cable jackets without removing connectors. When heat is applied, the adhesive lining melts and flows, encapsulating and sealing components contained within the shrink tube and bonding permanently to a cable or connector. The tube is made up of irradiated crosslinked polyolefin, is flame-retardant, provides excellent protection from fluids, moisture and corrosion, and is useful for the outdoor, automotive and marine industries.
Shrink temperature is 110°C (230°F).
Operating temperature range is -40°C to 125°C (-40°F to 257°F).
Flame-Retardant.
UL Listed.
4:1 Shrink Ratio (shrinks to 25% of original diameter).
Specifications Met:
Shrink temperature is 110°C (230°F).
Operating temperature range is -40°C to 125°C (-40°F to 257°F).
Flame-Retardant.
UL Listed.
4:1 Shrink Ratio (shrinks to 25% of original diameter).
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 1/4" | 4:1 | .250" | .059" |
| 5/16" | 4:1 | .313" | .079" |
| 1/2" | 4:1 | .512" | .118" |
| 3/4" | 4:1 | .750" | .197" |
| 15/16" | 4:1 | .945" | .236" |

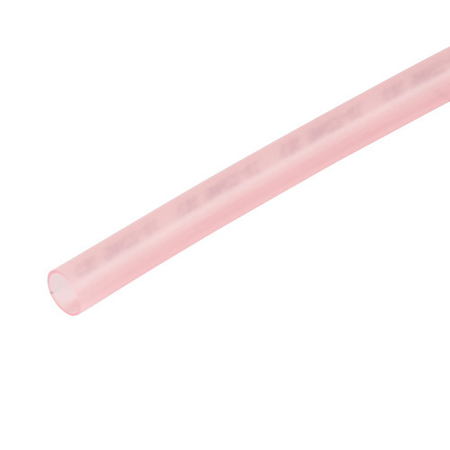

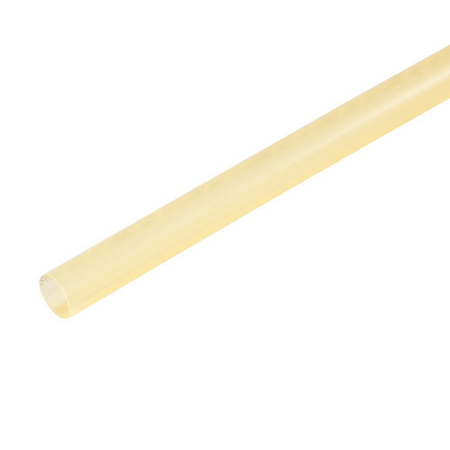

Clear, Colored Heat Shrink Tubing - 6" Pieces
Options
Quantity: 1
Item #: 980405
Description: Clear, colored heat shrink tubing is ideal for insulating terminals and wire splices, and the translucent, color tinted tubing allows for easy size identification and viewing of the connected area. Clear, colored heat shrink tubing shrinks 3:1 of its original size.
Ideal for insulating terminals and wire splices.
Operating temperature is -55°C to 110°C (-67°F to 230°F).
Ul listed E157227, MIL-DTL-23053/4.
3:1 shrink ratio.
Specifications Met:
Ideal for insulating terminals and wire splices.
Operating temperature is -55°C to 110°C (-67°F to 230°F).
Ul listed E157227, MIL-DTL-23053/4.
3:1 shrink ratio.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 22-24 Ga | 3:1 | .115" | .028" |
| 22-18 Ga | 3:1 | .215" | .045" |
| 16-14 Ga | 3:1 | .255" | .080" |
| 12-10 Ga | 3:1 | .391" | .060" |
4:1 Heat Shrink Tubing - 6" Pieces
Options
Quantity: 1
Item #: 985400
Description: 4:1 heat shrink tubing is puncture resistant and provides superior strain relief. The adhesive-lined tubing shrinks down 28% more than standard 3:1 shrink tubing, and is ideal for protecting multiple wires and irregular shapes. 4:1 heat shrink tubing remains flexible after installation and the clear tubing also allows for visual inspection of a connection.
The best protection for electrical components
Remaining flexible after installation, this tubing is perfect for wire harness and trailer applications.
Clear material allows for visually inspection after insulation.
Each tube has a dash-colored line to indicate the inside diameter size.
Rated at -55° to 110° C (-67° F to 230° F).
4:1 shrink ratio. Tubing is adhesive-lined.
Specifications Met:
The best protection for electrical components
Remaining flexible after installation, this tubing is perfect for wire harness and trailer applications.
Clear material allows for visually inspection after insulation.
Each tube has a dash-colored line to indicate the inside diameter size.
Rated at -55° to 110° C (-67° F to 230° F).
4:1 shrink ratio. Tubing is adhesive-lined.
Specifications Met:
| Diameter | Shrink Ratio | Size Before Shrink | Size After Shrink |
|---|---|---|---|
| 24-12 Ga | 4:1 | .220" | .045" |
| 22-10 Ga | 4:1 | .300" | .060" |
| 16-8 Ga | 4:1 | .350" | .080" |
| 14-4 Ga | 4:1 | .450" | .018" |
| 8 Ga - 2/0 | 4:1 | .700" | .105" |
Back To Top
